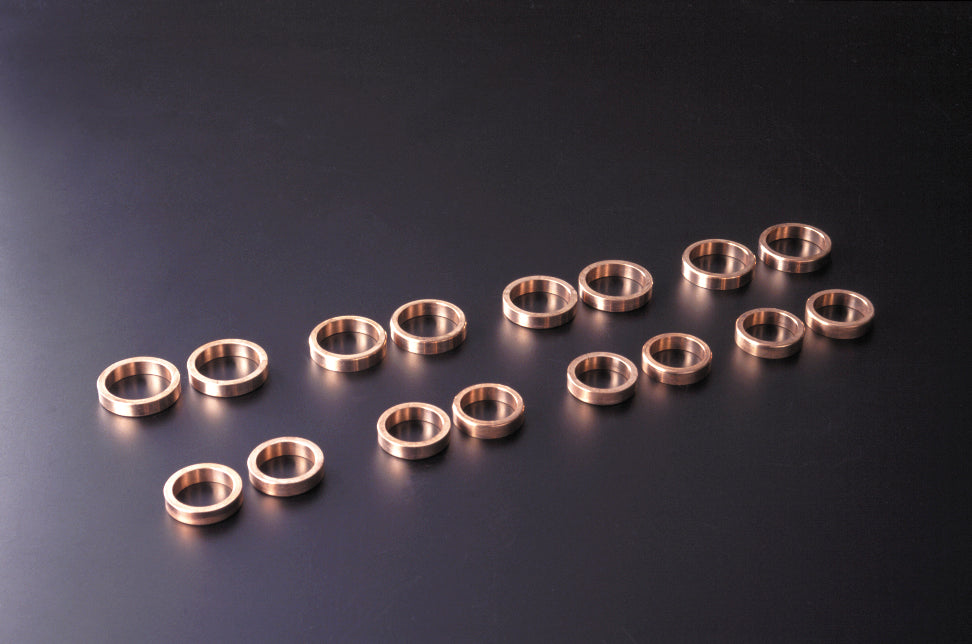

TOMEI BERY-RING SET For MITSUBISHI EVO 4G63 163101

TOMEI

Brand
TOMEI
Product Number
163101
Compatible Car
MITSUBISHI EVO
Compatible Engine
4G63
Product Description
The function of which valve sheet is asked, is maintaining air tightness with a valve, and generally wear resistance is required. However, with the engine used by high rotation and high load, the cooling performance of a valve sheet becomes very important further, and it is greatly concerned with an engine output. When engine is high rotation and high load, it is impossible to achieve high output from the engine if cooling performance of the cylinder is low and knock limit does not become high, since the temperature of the circumference of a cylinder head rises unusually. In racing engine that temperature needed to be carefully controlled, how much you can cool the circumference of the sheet ring is the important issue, and the technique of using high heat conduction metal, such as copper for a sheet ring, has been taken.Copper has one of the highest thermal conductivities through all metal that enables receiving heat from cylinder and cool it down quickly by transmit the heat to the cylinder head (Degree of heat conduction:. 1.silver, 2.copper, 3.gold, 4 .aluminium, ... 10. cast iron -.. STD) We select beryllium copper alloy (BeCu) that can secure mechanical intensity most in the copper alloy, which has ideal fatigue resistance and wear resistance while securing a preeminent cylinder cooling performance We named it "bery-ring" and applied to the high performance turbo charged engine
APPLICATION:. 4G63
IN / EX SET
MATERIAL: Beryllium (BeCu)silver, 2.copper, 3.gold, 4.aluminium, ... 10. cast iron -. STD) We select beryllium copper alloy (BeCu) that can secure mechanical intensity most in the copper alloy, which has ideal fatigue resistance and . wear resistance while securing a preeminent cylinder cooling performance We named it "bery-ring" and applied to the high performance turbo charged engine
APPLICATION:. 4G63
IN / EX SET
MATERIAL: Beryllium (BeCu)silver, 2.copper, 3.gold, 4.aluminium, ... 10. cast iron -. STD) We select beryllium copper alloy (BeCu) that can secure mechanical intensity most in the copper alloy, which has ideal fatigue resistance and . wear resistance while securing a preeminent cylinder cooling performance We named it "bery-ring" and applied to the high performance turbo charged engine
APPLICATION:. 4G63
IN / EX SET
MATERIAL: Beryllium (BeCu)br> IN / EX SET
MATERIAL: Beryllium (BeCu)br> IN / EX SET
MATERIAL: Beryllium (BeCu)
Remarks
Notes
Images are for illustration purpose only. Actual product may vary.
