¥46,450 JPY ¥49,500 JPY
| /
| Brand | REVOLUTION |
| Series Name | PILLOW BALL TIE ROD END |
| Product Number | RZN8-TE |
| Compatible Car | TOYOTA GR86 ZN8 |

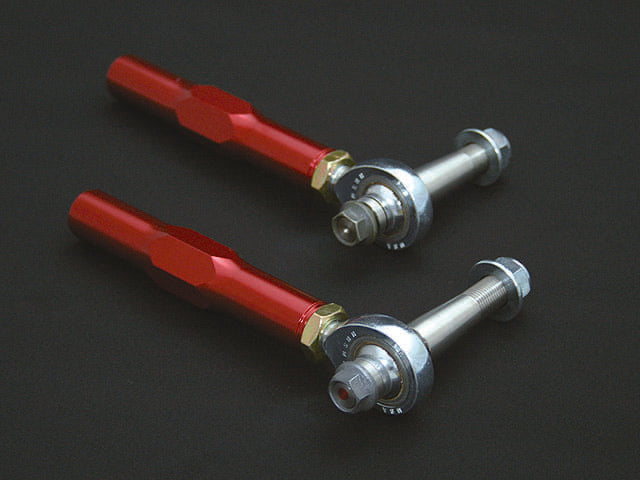

| Product Description | Steering tie rod end for vehicles with lowered vehicle height. It is manufactured based on a vehicle that has been lowered by about 30mm, and it eliminates the problem that the nose direction does not easily change even when the steering wheel is turned, and that it wobbles when braking. It is not only for high-tuned cars, but you can feel the difference even in normal use, correcting bump out during braking and adjusting the Ackermann angle during cornering. If these geometries are prioritized, the pillow ball rod ends on the market will exceed the critical angle due to the problem of the allowable range of motion, so a high-strength, high-tilt type rod end is used. Since the tie-rod ends tend to point upward when the vehicle height is short, it's not as simple as just lowering them accordingly. This is because the angle of each arm (lower arm in the case of 86/BRZ) will change as much as the vehicle height is lowered. Therefore, it is necessary to set after measuring the vehicle height down amount and brake nose dive amount. Our approach is to extract the correction value of the bump angle during braking and the correction value of the Ackermann angle during cornering, and produce with compatible values. * Not compatible with BRZ(ZD8) * Reference installation time 0.6H . |
| Notes | Images are for illustration purpose only. Actual product may vary. |
