¥40,148 JPY ¥41,040 JPY
| /
| Brand | RACING FACTORY YAMAMOTO |
| Series Name | OIL CATCH TANK |
| Product Number | RACING-FACTORY-YAMAMOTO-00033 |
| Compatible Car | HONDA S2000 AP1 AP2 |

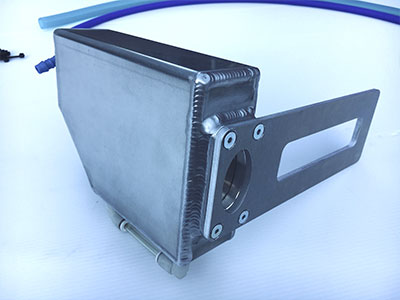

| Product Description | If the battery is smaller than the B20L, it is an oil catch tank that can be easily installed by simply placing an aluminum plate extending from the oil catch tank body under the battery.The aluminum plate on the bottom of the battery and the oil catch tank are connected by screws, and the orientation can be freely changed to the front, back, left and right of the battery.There is no drilling work in the car body, and it can be stored neatly.The nipple φ8, 90 degrees on the upper surface of the oil catch tank is the drain that connects to the suction hose.The diagonal nipple φ12 leads to the main breather pipe, and the nipple φ8 leads to the PCV valve.When connecting the PCV valve to the oil catch tank, close the surge tank side with a silicone cap.The nipple holes of the oil catch tank are PT1/8 or PT1/4, respectively, so it is possible to replace them with fittings such as Earls by attaching an AN adapter.Since the mist separator is built into the oil catch tank, the oil from the blow-by gas is stored in the oil catch tank as much as possible, so white smoke from the muffler is suppressed.The accumulated oil can be easily removed from the level gauge tube by pressing down on the claw of the one-touch joint of the level gauge, and it can be discharged from there.It is also possible to turn it over and discharge it from the nipple. |

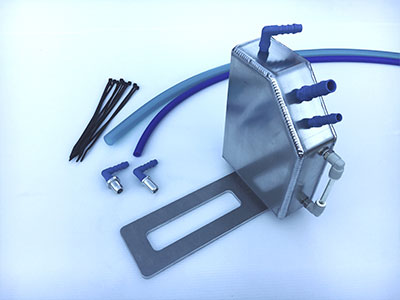

| Remarks | Contents:Oil Catch Tank, Main Body, Silicone Hose φ12 / 1.4m, Silicone Hose Φ8 / 1.4m, Silicone Mekra Cap, φ8, PCV Valve Adapter φ8, Air Pump Suction Nipple φ8, Tie Wrap x10pcs |
| Notes | Images are for illustration purpose only. Actual product may vary. |
