¥42,321 JPY ¥45,100 JPY
| /
| Brand | M&M HONDA |
| Series Name | COMPLIANCE PILLOW BALL BUSH |
| Product Number | 00805-FD2-F001 |
| Compatible Car | CIVIC FD2 Mugen RR |

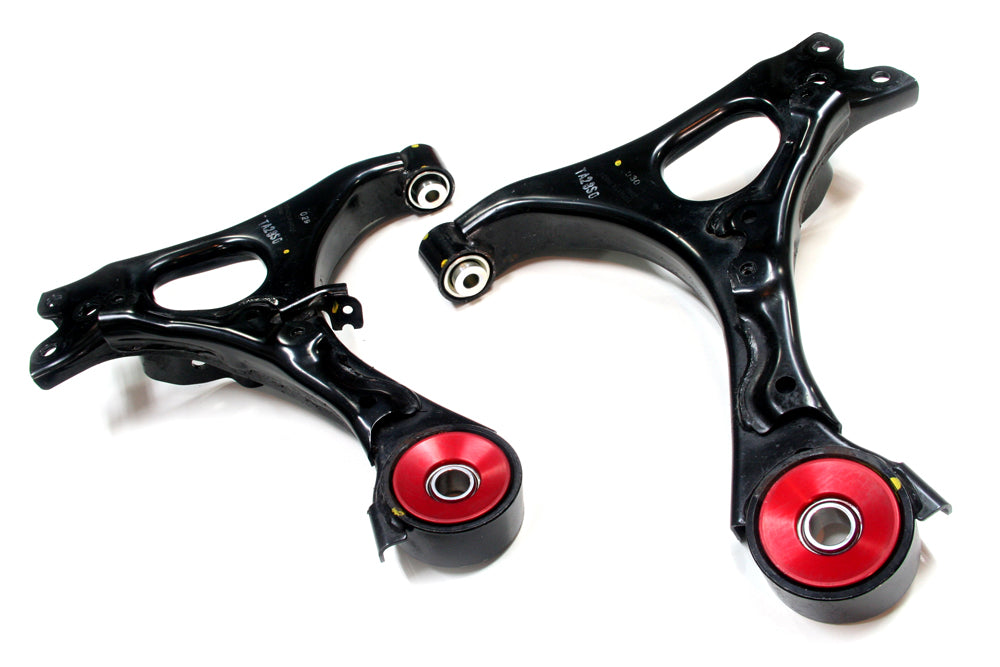

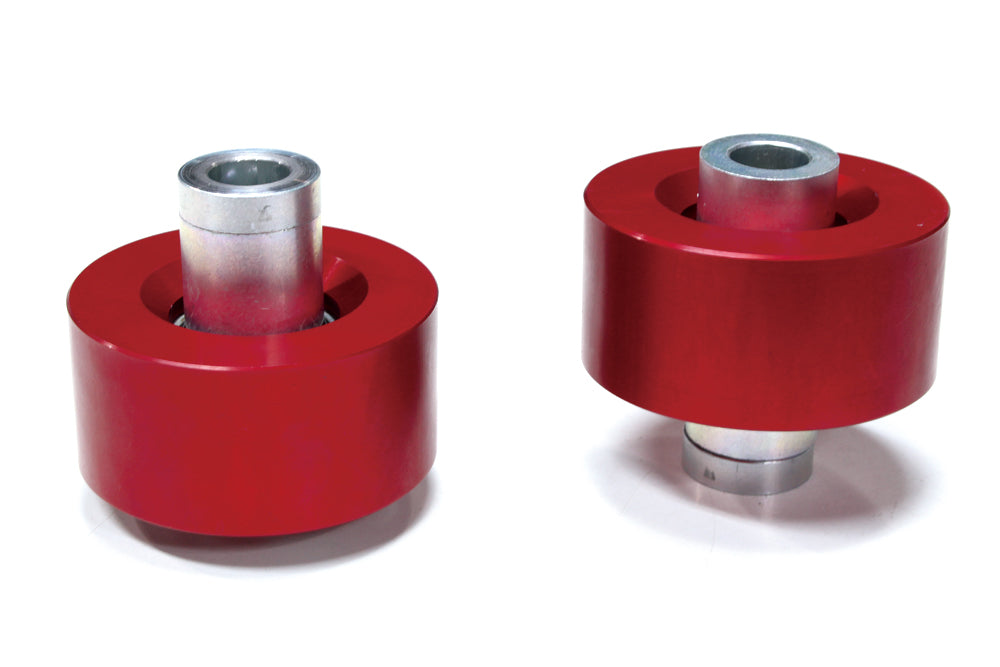

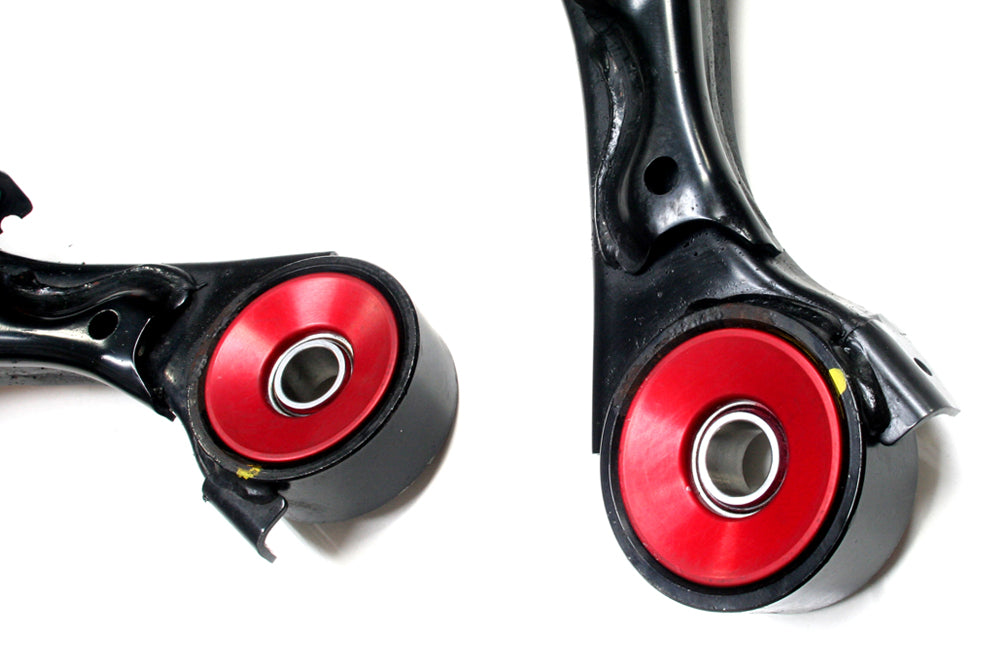

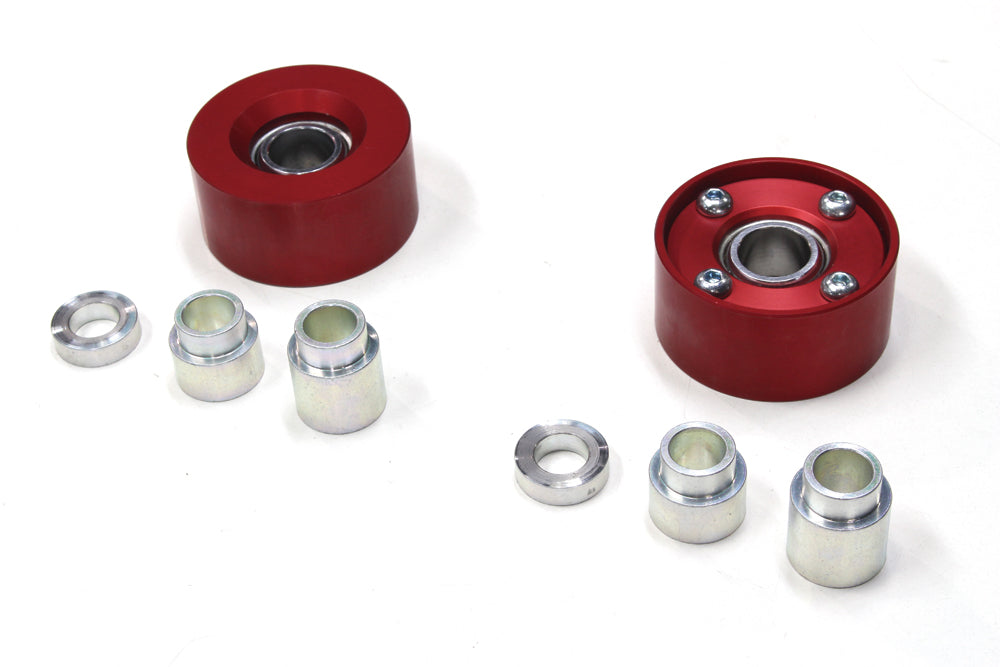

| Product Description | In order to keep the change in the geometry of the front suspension of the FD2 at an appropriate value, and to eliminate the extreme deformation under load, which is a weak point of the rubber bush, it is recommended to make the compliance pillow. In addition, this adjustable compliance pillow is an excellent one that can adjust the mounting angle of the lower arm, and the anti-nose dive geometry can be adjusted. You can freely control the posture change, which is the basis of damper setting. Three lower arm tuning parts are available: an adjustable compliance pillow, a lower arm pillow, and an adjust type roll center adjuster. Adjust the anti-nose dive geometry of this adjustable compliance pillow mount with the included spacers. Spacers are attached to the top and bottom of the lower arm body, and the angle of the lower arm is changed according to the thickness. It can be used as a countermeasure against under and over tendencies when cornering, and as an auxiliary control for posture changes when adjusting the vehicle height. Adjustable compliance Pillow setting method It is an excellent one that can adjust the mounting angle of the lower arm, and by changing the anti-nose dive geometry, the posture changes without relying only on the damper setting (vehicle height adjustment, damping force adjustment). It is an excellent one that can freely control. Set the attached spacers above and below the complex pillow. The anti-nose dive geometry is changed by changing the thickness of the spacers above and below it. |
| Remarks | It is desirable to use the lower arm pillow (00805-FD2-F002) at the same time. Press-fitting work with a press is required for installation, so please ask a pro shop. Please adjust the alignment after installation. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
