¥117,675 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209141-QQ-1 |
| Compatible Car | LEXUS LBX MAYH10 2WD |

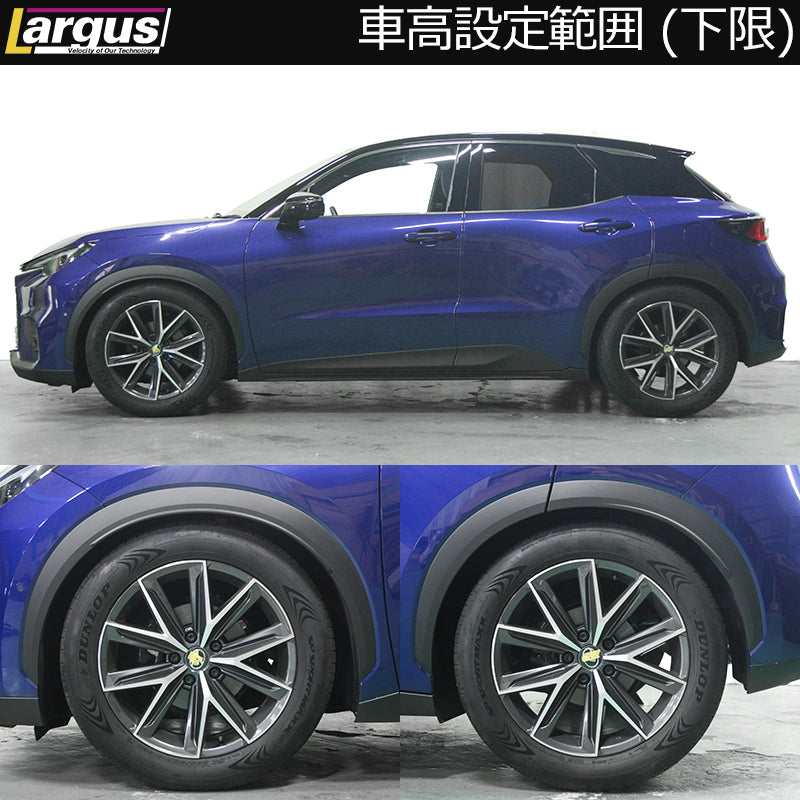

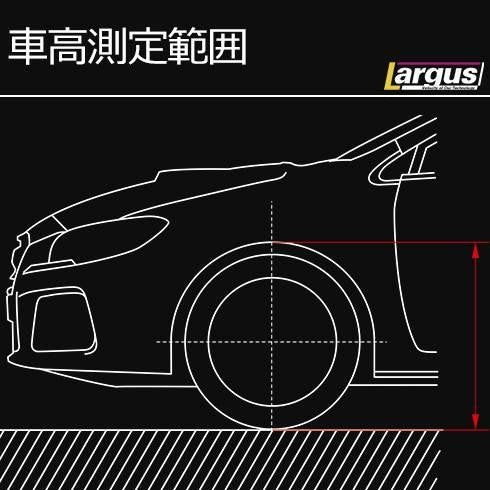

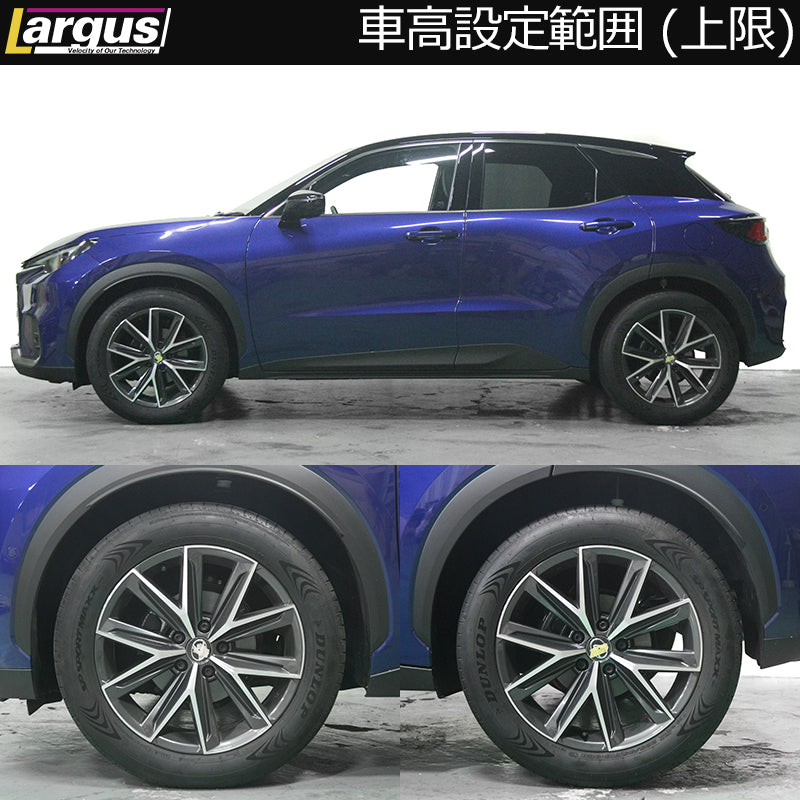

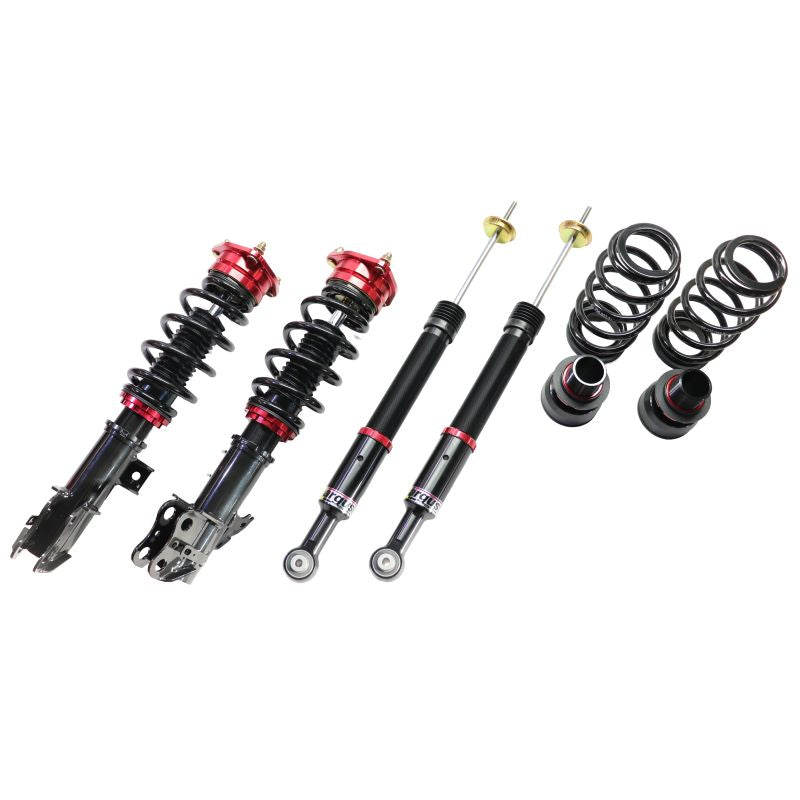

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: LEXUS Model: LBX Vehicle model: MAYH10 Year: 2023/11~ Drive system: 2WD Frequency: 5kg Rear: 3.3kg Free length: F: 210mm Free length: R: 230mm Front upper mount: Fixed reinforced rubber Rear upper mount: Mountless Front damping position: Fixed with dial (upper upper mount) Rear damping position: Fixed with dial (upper upper mount) Front height adjustment range: 697mm - 743mm Rear height adjustment range: 715mm - 758mm Lowering amount: -48mm to -2mm Down amount R: -44mm to -1mm |
| Remarks | To adjust the front damping, disassembly or removal of the coilovers is required due to the cowl located above the upper mount. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
