¥113,176 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209106-QQ-6 |
| Compatible Car | LEXUS UX250H MZAH15 4WD |

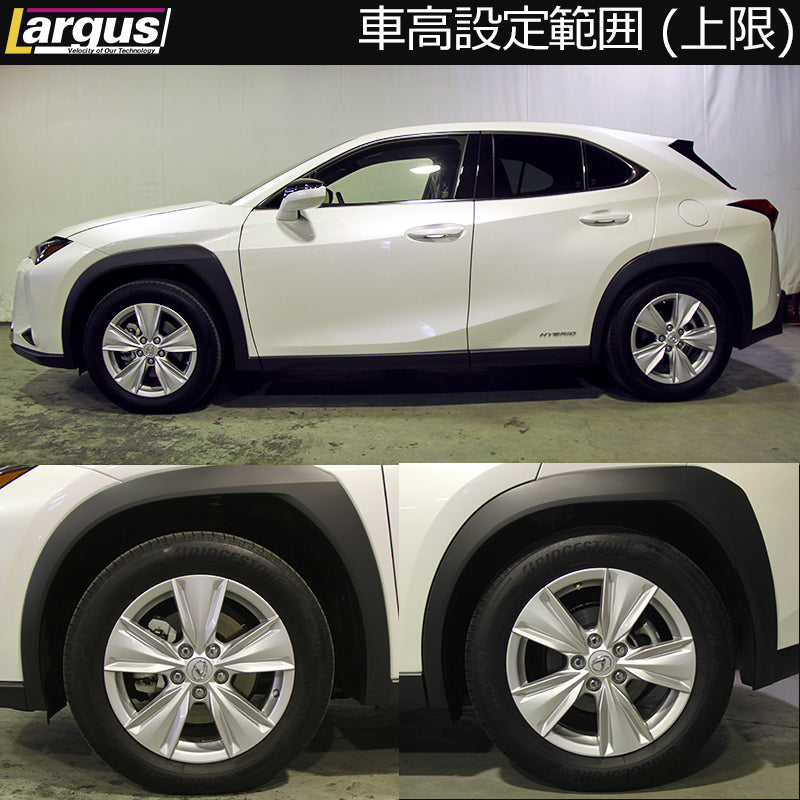

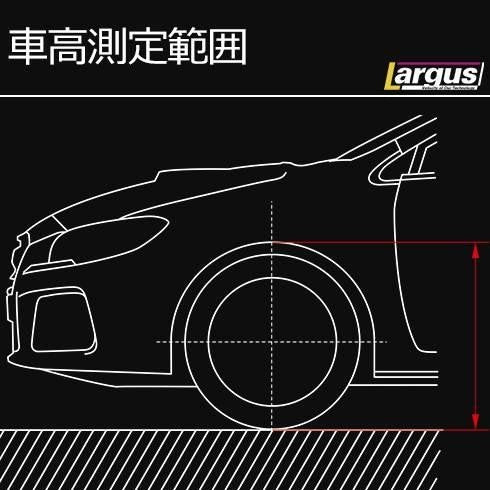

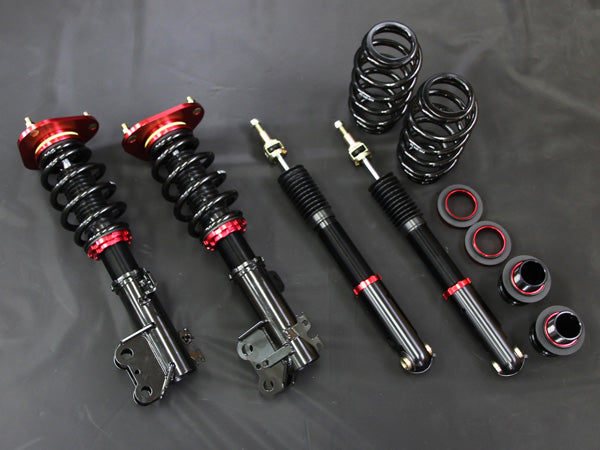

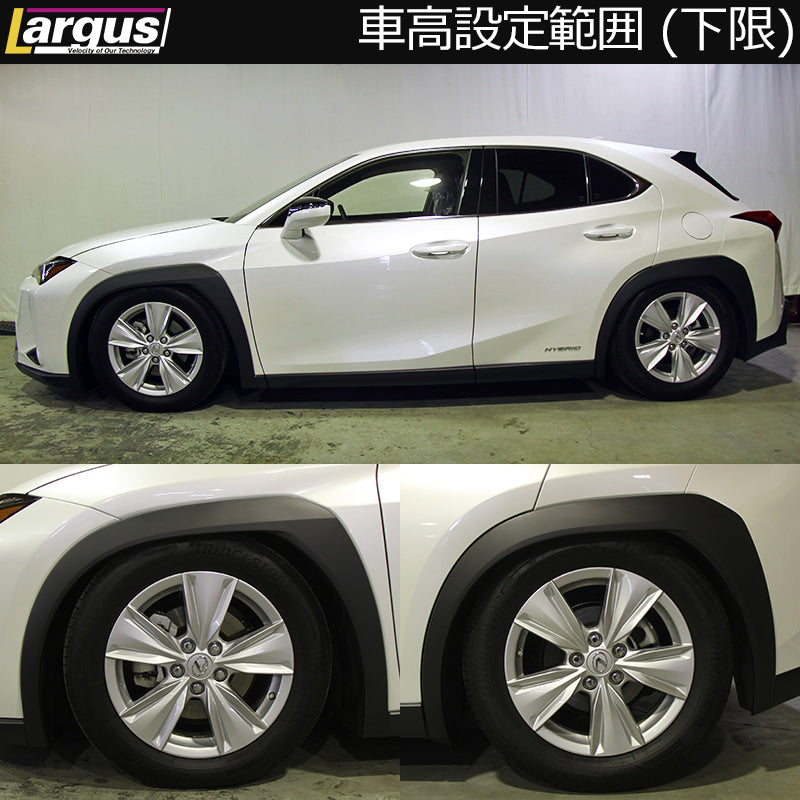

| Product Description | Car manufacturer: Lexus Model: UX250h Vehicle model: MZAH15 Year: 2018/11~ Drive system: 4WD Product: Full-length adjustable suspension kit SpecS Spring rate F: 6kg Spring rate R: 4kg Free length F: 190mm Free length R: 240mm Upper mount F: Fixed reinforced rubber Upper mount R: Mountless Damping position F: Separate dial (top of upper mount) Damping position R: Disc type (inside wheelhouse) Vehicle height adjustment range F (reference value): 655mm - 742mm Vehicle height adjustment range R (reference value): 662mm - 734mm Lowering amount F (reference value) : -89mm to -2mm Down amount R (reference value): -96mm to -24mm |
| Remarks | To adjust the front damping, you must remove the cowl top or the coilovers. The vehicle height adjustment range and lowering amount are based on the MZAH10 (UX250h) data. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
