¥88,957 JPY
| /
| Brand | J'S RACING |
| Series Name | TSUCHINOKO AIR INTAKE SYSTEM FRP |
| Product Number | TCB-P3 |
| Compatible Car | HONDA CIVIC EP3 |
| Compatible Engine | K20A |

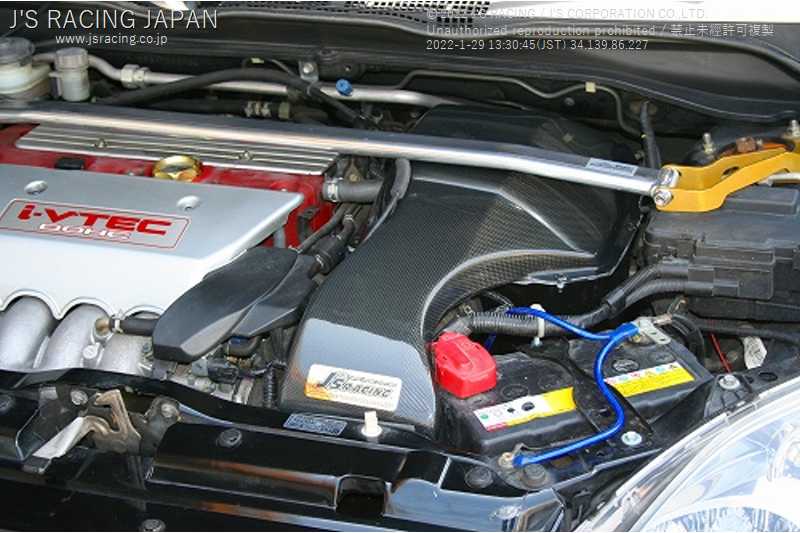

| Product Description | Material: FRP The EP3 dedicated air intake system, which boasts the world's highest specifications and has spent one year of development, is finally here. Succeeded in taking in the largest fresh air in the bolt-on type air intake market. As a result of carefully designing the duct shape and BOX shape, we were able to reliably secure power that exceeds the level of experience without sacrificing operability and comfort. [Intake structure] We succeeded in taking in fresh air directly by the air intake panel using the left part of the bumper grill. Fresh air is taken into the main duct from the same suction route as the genuine one without letting it escape. In addition, it is possible to double-take in even the air that has escaped to the upper part of the grill and the lower part of the bonnet by installing a subduct. The main duct part not only takes in air using ram pressure, but also the duct itself that adopts the NASA duct shape actively takes in air, demonstrating the Venturi effect. It is shaped to increase the suction flow rate even when it is stationary. Of course, the genuine bonnet stay battery can be used as it is. [Chamber BOX structure] The chamber BOX part eliminates the resistance of the cross section so that a lot of intake air spreads over the entire surface of the filter, and secures a large capacity of 6000cc. The filter also uses a large-capacity filter that uses a special cotton material. 1 Air sucked from the duct flows in from the top of the BOX. (2) If it spreads to the rear as it is, it will flow into the lower part behind the BOX without resistance due to the R-shaped side surface. 3 As a result, we are particular about the inside so that the air can be distributed over the entire area of the BOX. Of course, even if rainwater etc. enters, there is no situation where water collects because it has a drain hole. [Component parts] -Dedicated air intake panel (FRP) -Dedicated air intake duct (FRP) -Dedicated air chamber BOX (FRP) -Dedicated filter variant Joint (FRP) -Vibration absorption type rubber mount bolt -Each self-lock nut, bolt, tapping screw, gap tape included If the filter becomes dirty, it can be used again with the optional cleaning kit. Is possible. In addition, a replacement filter is also set, so please be assured of the after-sales aspect. |
| Remarks | Engine: K20A Applicable model: Compatible with all EP3 models regardless of the first half or the second half (TYPE-R) Applicable bumper: Compatible with genuine bumpers * Due to the structure of EP3, the engine moves back and forth during starting and sports driving. We have conducted clearance design and running tests with this in mind, but we recommend using an engine torque damper together to prevent large movements. Also, when installing this product, check for any abnormalities in the engine mount before installing this product. For vehicles that have been replaced with a bonnet with a duct, etc., there is a risk of interference with the duct part due to the structure that prioritizes suction, so it is necessary to cut the interference part of the bonnet. Normal and normal shape bonnets can be installed without interference. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
