¥167,660 JPY ¥194,700 JPY
| /
| Brand | JAOS |
| Series Name | BATTLEZ LIFT-UP KIT AJ COMPLETE FOR SUZUKI JIMNY JC74 SERIES |
| Product Number | A734522C |
| Compatible Car | SUZUKI JIMNY JC74 SERIES |

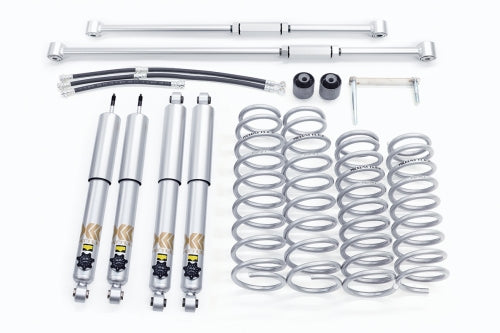

| Product Description | Model Year: 2025.04- Adaptation: All [Product Specifications] This complete set includes coil springs made with titanium alloy and guaranteed against sagging, high-performance dampers with adjustable damping force, and a lateral rod and assist kit to compensate for shifts caused by lift-up. [Product Contents] Front coil springs, rear coil springs, front dampers, rear dampers, long brake hoses, front lateral rods, rear lateral rods, assist kit, damper position adjustment kit [Vehicle Height] Front Lift-up: 35-40mm, Rear Lift-up: 35-40mm [Spring] - Wire Diameter: (Front) 12 Φ, (Rear Right) 11.5 Φ, (Rear Left) 11 Φ - Spring Rate: Front: 24.9 N/mm, Rear: 22.0 N/mm - Color: Silver [Shock Absorber] - Type: Low-pressure gas twin-tube damper - Damping Force Adjustment: 14-step dial adjustment - Damping Force: (Front) Rebound -39 to -9%, Compression -3 to 66% (0.3m/sec/compared to genuine); (Rear) Rebound -20 to 9%, Compression 37 to 83% (0.3m/sec/compared to genuine) - Stroke: Front: +21mm, Rear: +31mm - Body Diameter: Front: Ø45.0, Rear: Ø45.0 - Piston Diameter: Front: Ø25.0, Rear: Ø25.0 - Color: Silver [Assist Kit] Front caster bushing [Installation] - Installation Method: Genuine replacement - Estimated Installation Method: 3.5 to 4 hours |

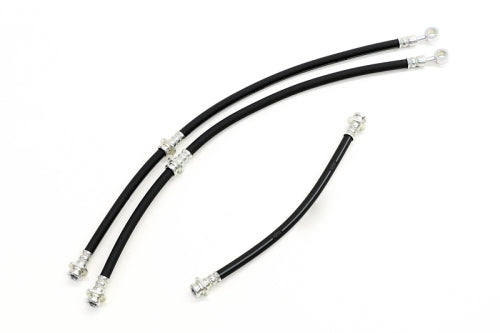

| Remarks | Rear damper position adjustment kit included. This is because the clearance between the coil spring and damper is narrower compared to the genuine part. Long brake hoses must be replaced. Brake hose replacement requires specialized knowledge, so please have it replaced at a certified factory for automotive disassembly and repair. Lifting the vehicle may cause it to no longer meet the direct forward and side visibility standards (Safety Standards Article 44, Paragraph 5), and it may be necessary to add forward visibility confirmation mechanisms such as a front view camera. Safety equipment such as driver assistance systems and collision avoidance systems from each automobile manufacturer may malfunction due to changes in vehicle height, causing radar, cameras, sensors, etc. to misinterpret or malfunction. We are not responsible for any malfunctions of these systems or accidents caused by malfunctions resulting from changes in vehicle height due to the installation of our lift-up (or lowering) suspension. Please be aware of this in advance. When this lift-up set is installed, there will be no interference between the front propeller shaft and the cross member. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
