¥140,190 JPY ¥162,800 JPY
| /
| Brand | JAOS |
| Series Name | BATTLEZ LIFT-UP SET FOR VFA32 14 25TiW SET |
| Product Number | A732125 |
| Compatible Car | TOYOTA RAV4 50 GASOLINE 4WD 2019- ADVENTURE |

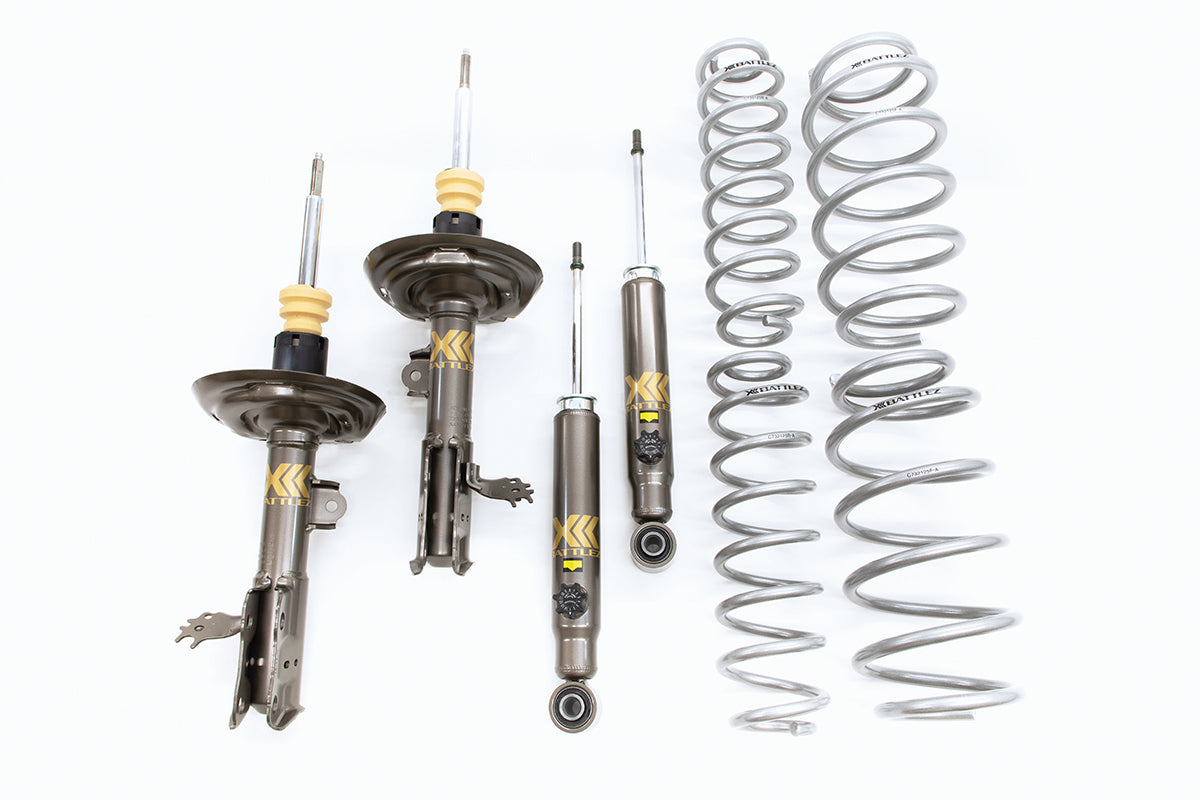

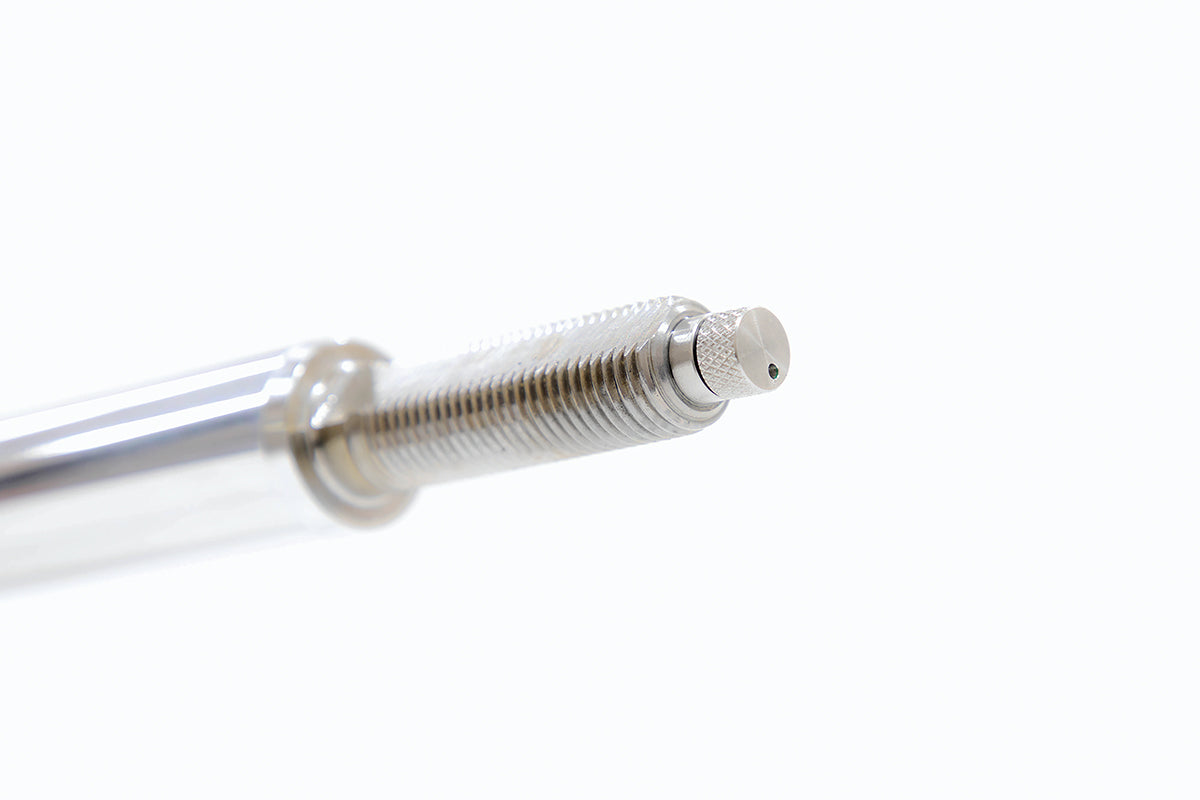

| Product Description | This lift-up kit combines a titanium-containing coil spring with a sag guarantee and a high-performance damper equipped with the Harmoflex® mechanism . The lift-up amount is approximately 30 mm at the front and 20 mm at the rear. The coil spring, which is made of titanium-containing material with the characteristic of being "soft but firm," corrects the standard posture (front sagging) of the vehicle to a horizontal position without spoiling the driving performance, achieving a silhouette that is characteristic of an SUV. In addition, the "BATTLEZ Damper VFA" improves ride comfort and handling. The damping force adjustment of the front damper is adopted with "32-step needle adjustment," allowing for more precise settings than conventional dial adjustments. The coil spring comes with a sag guarantee for peace of mind even with long-term use.Model year: 19.04~Indications: Gasoline 4WD (excluding PHV)JAN code: 4948350303500Product rank: EProduct contents: Front coil springs, rear coil springs, front dampers, rear dampers, front bump stoppersVehicle height/ Lift up :Front: 25-30mm, Rear: 15-20mm (4WD gasoline vehicles)Front: 0mm, Rear: 20-25mm (OFFROAD-pkg)Spring: Wire diameter: Front 15.1 Φ Rear 13 ΦSpring rate: Front: 28.5N/mm, Rear: 35.5N/mmColor: SilverShock absorber: Type:Front: Low-pressure gas twin-tube dampersRear: Low-pressure gas twin-tube dampers, Harmoflex® mechanismDamping force adjustment:Front: 32-step needle adjustment, Rear: 14-step dial adjustmentDamping force:Front: Rebound side -6 to -29%, compression side -21 to -80% (0.3m/sec/compared to stock)Rear: Rebound side -17 to 3%, compression side -19 to 14% (0.3m/sec/compared to stock)Stroke: Front: +12mm, Rear: -5mmBody Diameter: Front: 50.8Φ, Rear: 54.0ΦPiston Diameter: Front: 35.0Φ, Rear: 30.0ΦColor: Gray metallicInstallation Method: Genuine replacementNotes and supplementary explanations: *As of December 2023, delivery may be significantly delayed from the indicated delivery date.- Sagging guarantee included (coil springs only)- Grades that cannot be installed: gasoline 2WD, hybrid, and PHV vehicles- Grades not confirmed for installation: Adventure "OFFROAD package II"Safety equipment such as driving assistance systems and collision avoidance systems from each automobile manufacturer may cause radar, cameras, and sensors to misrecognize or malfunction due to changes in vehicle height. Please note that we are not responsible for any malfunctions of these systems due to changes in vehicle height caused by the installation of our lift-up (or lowering) suspension, or accidents caused by such malfunctions. |
| Remarks | Installation Instructions: ONLY SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
