¥20,985 JPY ¥23,328 JPY
| /
| Brand | IKEYA FORMULA |
| Series Name | TIE ROD SHORT TYPE |
| Product Number | IFAC03001 |
| Compatible Car | TOYOTA MARK II CHASER CRESTA #X90 |

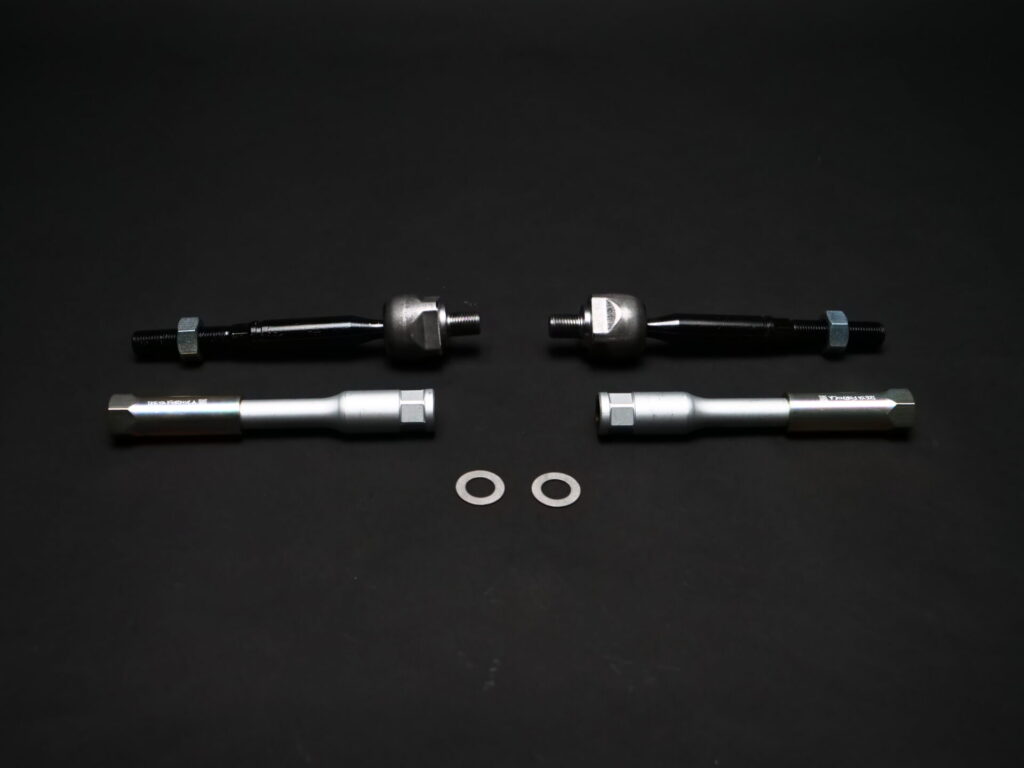

| Product Description | Tie Rod Short TYPE Tie Rod (short type) In recent years, due to the wide tread and high grip of tires and the sharp increase in cutting angle due to knuckle processing, there are situations where genuine tie rods lack rigidity in high G driving on the circuit. is occurring. In this item, the inner socket (ball joint part) and the rod body are split type, and even with the wide tread specification with the extended lower arm, the biting allowance of the screw is secured, and the rigidity of the tie rod as a whole is improved to reduce the risk of steering trouble. We have achieved durability that can be used for a long time even in circuit driving. *Tie rod ends for JZX100 are required when using on JZX110 series Altezza SXE10 series vehicles. ☆Repair parts ・Repair inner socket [Rack side ball joint] ¥8,400 (1 piece, tax excluded) ・Repair tie rod body (with lock nut) short type [Knuckle side silver rod/gold nut] ¥4,800 (1 piece ・excluding tax) Short TYPE (lower arm length genuine ~ 20mm) *Depending on the length, shape, combination, and alignment settings of the processed knuckle (lower ball joint), lower arm, and tension rod (lower arm No. 1, lower arm No. 2) may give an excessive burden to the steering rack, each arm, and the vehicle body. Please read the instruction manual carefully and set up so that there is no interference between the knuckles and each arm on the current car. Click here for details ↓ "To use tie-rod products for a long time" Video 1 Video 2 |
| Notes | Images are for illustration purpose only. Actual product may vary. |
