¥166,809 JPY ¥222,200 JPY
| /
| Brand | HKS |

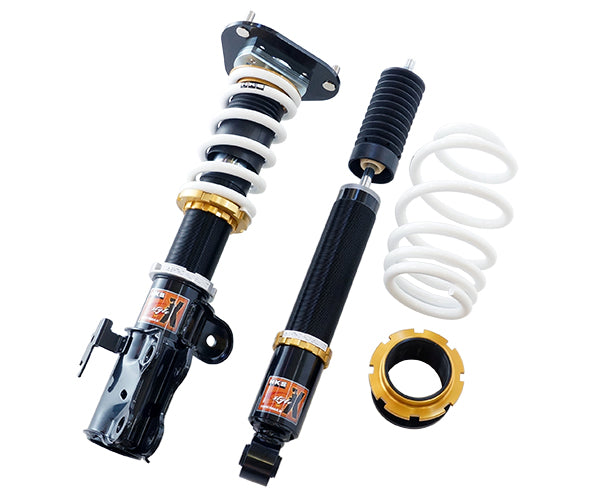

| Series Name | HIPERMAX S-STYLE X SERIES COILOVERS SUSPENSION TYPE |
| Product Number | 80120-AT217 |
| Compatible Car | TOYOTA PRIUS Α ZVW41W |
| Compatible Engine | 2ZR-FXE(2ZR-3JM) |
| Product Description | Year Mode: 11/05-21/03 FULL KIT SETTING SPRING RATE F/R N/MM (KGF/MM): F=69(7)/R=49(5) FREE LENGTH F/R MM: 170/SPECIAL DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N F: STRETCH SIDE/SHRINK SIDE: 804/177 DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N R: RETENTION SIDE/RETRACTION SIDE: 549/108 VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) FRONT: -46(-17 - -101) VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) REAR: -61(-61 - -99) |
| Remarks | Separate rear shape and vehicle height data are for ZVW41W. Can only be shipped with UPS or FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
