¥166,809 JPY ¥222,200 JPY
| /
| Brand | HKS |

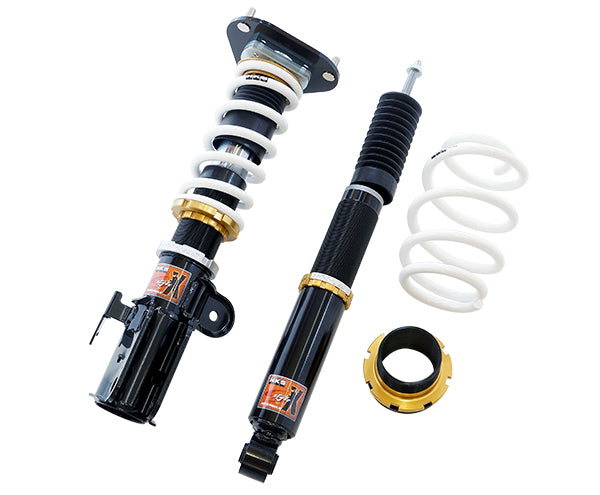

| Series Name | HIPERMAX S-STYLE X SERIES COILOVERS SUSPENSION TYPE |
| Product Number | 80120-AT216 |

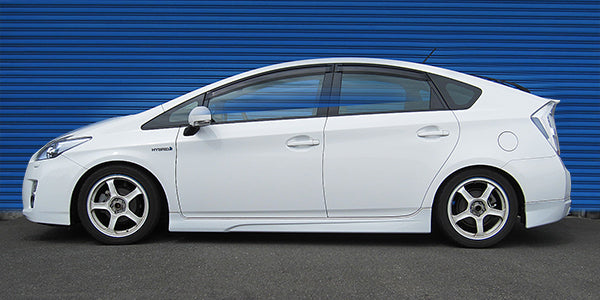

| Compatible Car | TOYOTA PRIUS PHV ZVW35 |
| Compatible Engine | 2ZR-FXE(2ZR-3JM) |
| Product Description | Year Mode: 12/01-17/01 FULL KIT SETTING SPRING RATE F/R N/MM (KGF/MM): F=58(6)/R=38(4) FREE LENGTH F/R MM: 200/SPECIAL DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N F: STRETCH SIDE/SHRINK SIDE: 765/186 DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N R: RETENTION SIDE/RETRACTION SIDE: 588/127 VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) FRONT: -47 (-30 - -69) VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) REAR: -96 (-77 - -130) |
| Remarks | Separate rear shape and rear vehicle height lower limit values are with the ride height adjuster assembly removed. Note) Since the minimum ground clearance of 9 cm cannot be secured at the time of shipment, please set the vehicle height according to the current vehicle. Can only be shipped with UPS or FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
