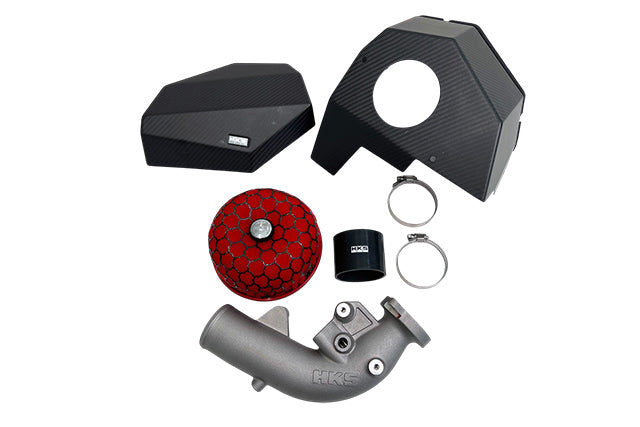

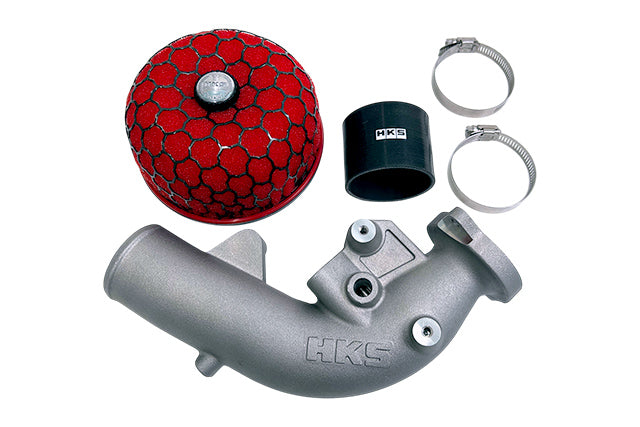

HKS COLD AIR INTAKE KIT STAGE2 RACING SUCTION KIT STAGE2 FOR HONDA S660 JW5 S07A 70026-AH012

HKS

COLD AIR INTAKE KIT STAGE2 RACING SUCTION KIT STAGE2

70026-AH012

HONDA S660 JW5

S07A

15/04 -22/03
This is a highly efficient intake system that was specially developed and designed to work with the GT120R (GT2912_a) with the goal of "producing 120 PS in the S660."
A new, smooth intake shape that is integrated with the compressor housing inlet has been designed to further improve intake efficiency.
For an optimized configuration for the GT120R PACKAGE (11004-AH004), we recommend using the COLD AIR INTAKE BOX KIT STAGE2 (70026-AH010) and AIR INTAKE DUCT RH (70026-AH009) together.
Vehicles already equipped with the COLD AIR INTAKE FULL KIT STAGE2 (70026-AH012) can upgrade to the GT120R by purchasing the GT2912_a SPORTS TURBINE KIT (11004-AH005).
For both the stock turbo and the GT100R (GT III-KX), this kit optimizes the suction pipe shape and flow passage cross section, creating more room for turbo rotation speed and improving durability.*When using the GT100R-specific data, do not change the set boost pressure.
The factory solenoid valve and blow-off valve can be installed in their original positions without the need to relocate them. Of course, it can also be used in conjunction with the SUPER SQVIV RETURN KIT PLUS (71008-AH008) without any additional brackets.
The dedicated intake box made of dry carbon fiber enhances the introduction of fresh air, and when used in combination with the carbon fiber engine cover, it gives the engine room a unified and luxurious look.

COLD AIR INTAKE BOX KIT STAGE2 + RACING SUCTION KIT STAGE2 SET product
For those who want to achieve 120PS by using it in combination with the GT2912_a SPORTS TURBINE KIT.
For those who want to boost up the factory turbo or have the GT100R package installed and want to tune it for more power and efficiency.

Images are for illustration purpose only. Actual product may vary.
