¥45,467 JPY ¥52,800 JPY
| /
| Brand | HKS |

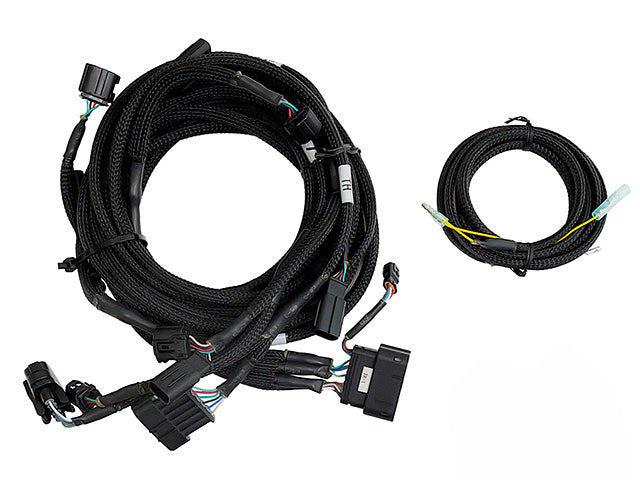

| Series Name | POWER EDITOR R HARNESS TR-1 |
| Product Number | 42999-AT001 |
| Compatible Car | TOYOTA GR COROLLA GZEA14H |
| Compatible Engine | G16E-GTS |
| Product Description | Model Year: 22/10~Features:You can boost the power by connecting it to the vehicle's sensor harness in conjunction with the "Power Editor R universal unit (sold separately) ".In addition to the rotation signal, the vehicle speed signal and throttle signal are also taken in, making it possible to control with the optimal correction value for each rotation speed, each gear, and each throttle opening.Since it can correct the airflow signal, the range of settings is wider than with Power Editor .By using Easy Writer for Power Editor R (free of charge) , you can create your own custom data, allowing you to make detailed settings to suit the individual differences of your vehicle.Even after installing this product (wiring), you can return it to its normal state by using the reset connector included with the general-purpose Power Editor R unit.This product is connected to the following sensor harness of the vehicle and connected to each channel of Power Editor R.ch1: Boost pressure sensor ・ ch2: Intake manifold pressure sensor ・ ch4: Throttle sensor ・ ch5: Air flow sensor ・ Cam angle sensor (rpm signal), vehicle speed signal (optional connection)*The boost pressure in the factory meter will deviate in the area where the intake manifold pressure is corrected by Power Editor R.*Please purchase 42018-AK002 separately for the "Power Editor R Universal Unit".*This product and the universal unit do not contain any data. After installation, actual vehicle setting is required. |
| Remarks | FOR MORE INFOR: |
| Notes | Images are for illustration purpose only. Actual product may vary. |
