¥45,467 JPY ¥52,800 JPY
| /
| Brand | HKS |
| Series Name | POWER EDITOR HARNESS SR-1 |
| Product Number | 42999-AS001 |
| Compatible Car | SUZUKI JIMNY JB64W |
| Compatible Engine | R06A(TURBO) |

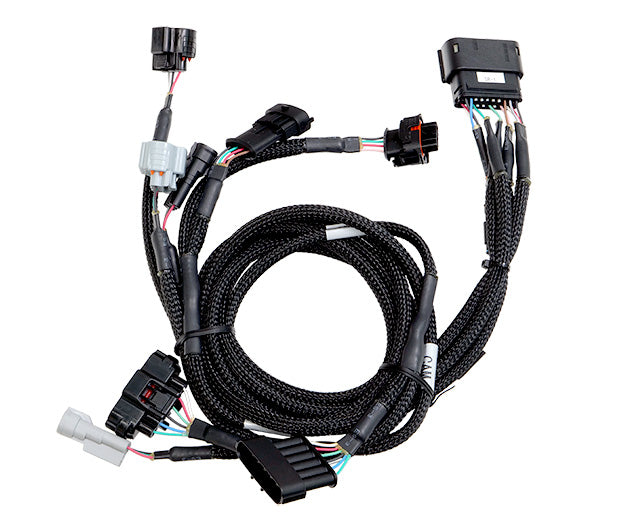

| Product Description | 18/07 - By connecting it to the vehicle's sensor harness in conjunction with the "Power Editor R general-purpose unit (sold separately) ," you can increase the boost. Since it also captures rotation signals and throttle signals, it is possible to control with optimal correction values for each rotation speed and throttle opening. Since corrections can be made using the RPM axis, the range of settings is wider than with Power Editor . By using Easy Writer for Power Editor R (free of charge) , users can create their own custom data, allowing them to make detailed settings to suit the individual differences of their vehicles. Even after installing this product (wiring), you can return it to its normal state by using the reset connector included with the Power Editor R general-purpose unit. This product is connected to the vehicle's sensor harness via an interrupt, and then connected to each channel of the Power Editor R. Channel 1: Boost pressure sensor, Channel 2: Intake manifold pressure sensor, Channel 4: Throttle shaft, Cam angle sensor (rpm signal) |
| Remarks | *Please purchase the "Power Editor R Universal Unit" (product number 42018-AK002) separately. *This product and the universal unit do not contain any data. After installation, you will need to adjust the settings on your vehicle. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
