¥34,100 JPY ¥39,600 JPY
| /
| Brand | HKS |

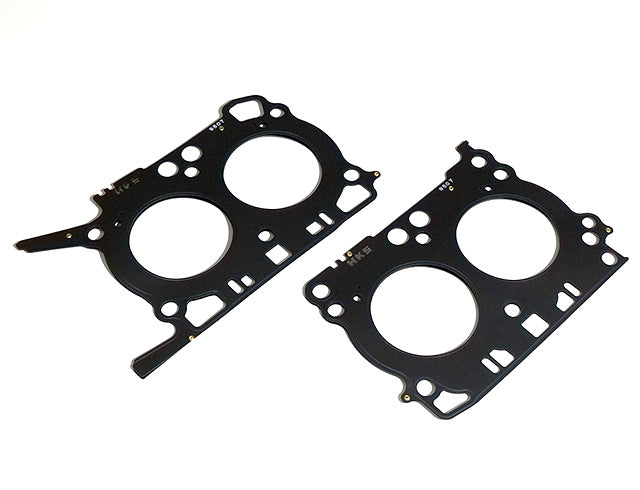

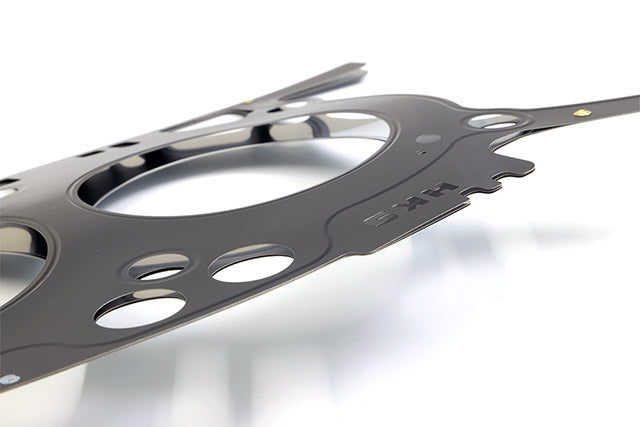

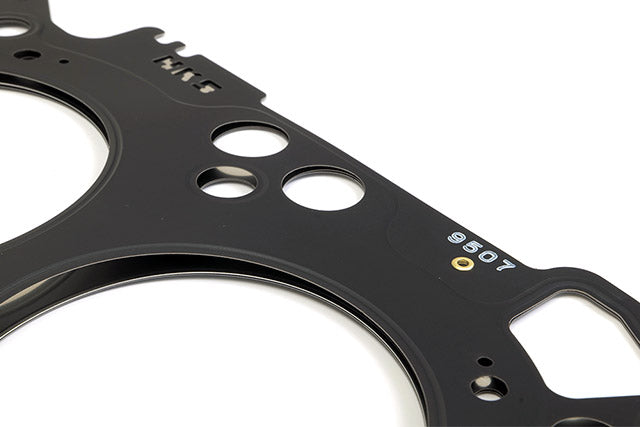

| Series Name | STOPPER TYPE HEAD GASKET |
| Product Number | 23001-AT005 |
| Compatible Car | TOYOTA GR86 ZN8 |
| Compatible Engine | FA24 |
| Product Description | Features:We have developed a stopper-type gasket with a high compression ratio for use in naturally aspirated engines.In order to increase the compression ratio, the thickness is set at 0.7 mm, which is thinner than the grommet type (t=0.8/1.2) already on the market.The thickness is set taking into consideration surface grinding during overhauls and piston oscillation in large diameter bores.The stopper structure of the bore seal is an independent type, ensuring high sealing performance.A special coating has been applied to the head and cylinder surfaces to improve the bonding strength between the head and cylinder.Gasket thickness (mm): 0.6 (genuine) / 2.4L: 12.5 / HKS 2.5L KIT: 12.2Gasket thickness (mm): 0.7(HKS) / 2.4L: 12.4 / HKS 2.5L KIT: 12.1 / Bore Diameter: φ95 |
| Notes | Images are for illustration purpose only. Actual product may vary. |
