¥20,839 JPY ¥24,200 JPY
| /
| Brand | HKS |
| Series Name | CAM-PULLEY X1 |
| Product Number | 22004-AN003 |
| Compatible Car | NISSAN |
| Compatible Engine | SR20DE(T) |

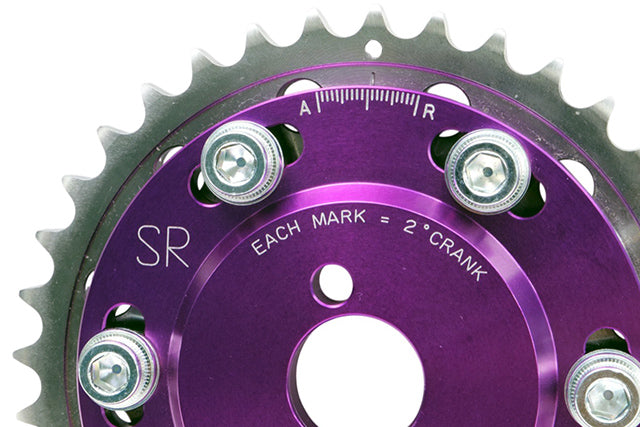

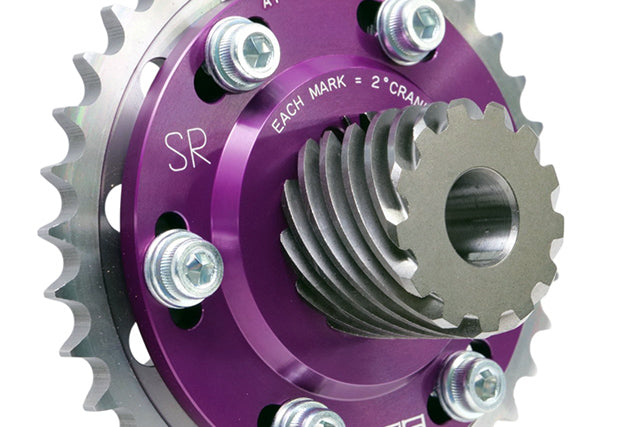

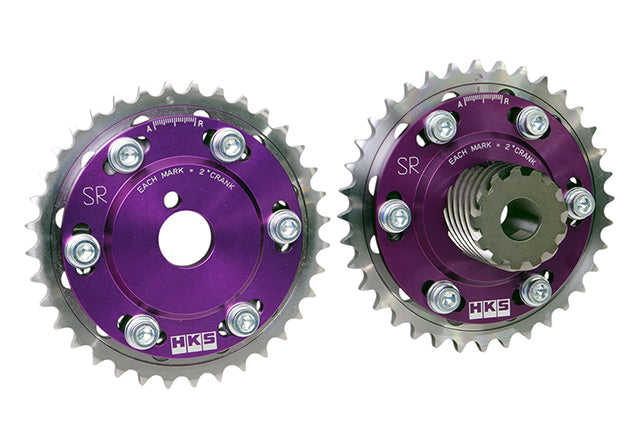

| Product Description | ■Features: The long-selling “Slide Cam Sprocket,” which has been very popular among SR20DE(T) users, has been renewed.As tuning progresses, the optimal valve timing will change due to changes in cam opening and specifications of various engine components. By adjusting the angle according to the amount of overlap when the opening of the IN side and EX side is increased, it becomes possible to achieve more accurate valve timing. The adjustment range is ±20° in crank angle compared to stock. Each scale on the inner plate corresponds to approximately 2° of crank angle. The center of the scale is designed to match the same phase as the normal pulley. In addition, as a measure against adjustment errors, “A” (Advance) and “R” (Retard) are engraved so they can be visually checked. It is also effective when used with a normal camshaft, but further performance improvement can be achieved by installing it together with our camshaft and setting it to the recommended valve timing. While maintaining its proven functionality, the EX-side sprocket will be sold with the drive gear press-fitted. There is no need to replace the gear from the original or arrange a new one, making it easier to purchase. Type : Aluminum Slide Sprocket |
| Remarks | It is compatible with the IN and EX sides of the horizontal engine and the IN side of the longitudinal engine. (NVCS cams cannot be installed) |
| Notes | Images are for illustration purpose only. Actual product may vary. |
