¥206,448 JPY ¥220,000 JPY
| /

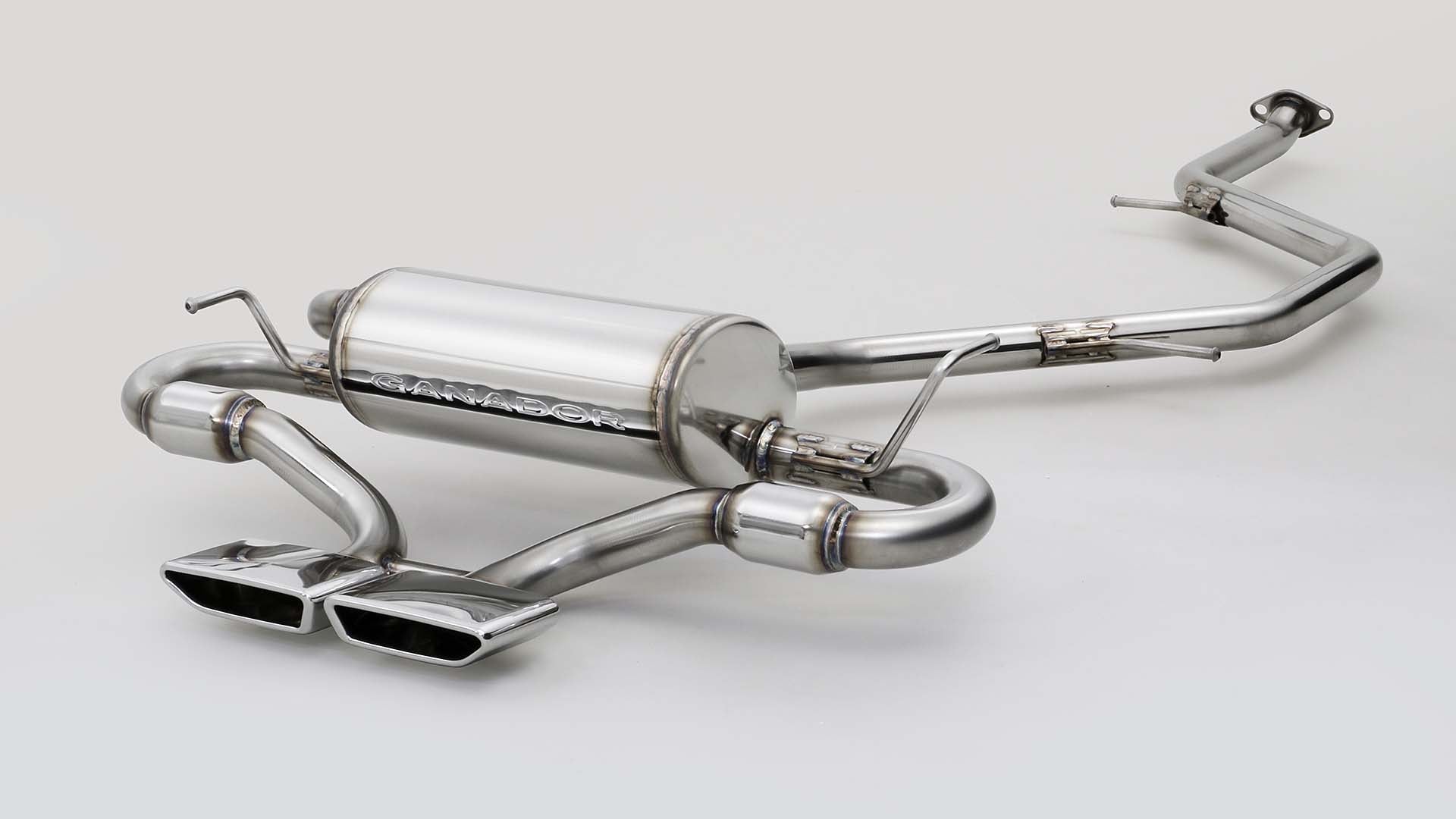

| Brand | GANADOR |
| Series Name | PBS SPORT MUFFLER |
| Product Number | PFS-004M |
| Compatible Car | TOYOTA PRIUS 6AA-MXWH60 HYBRID 2WD |
| Compatible Engine | M20A-FXS |

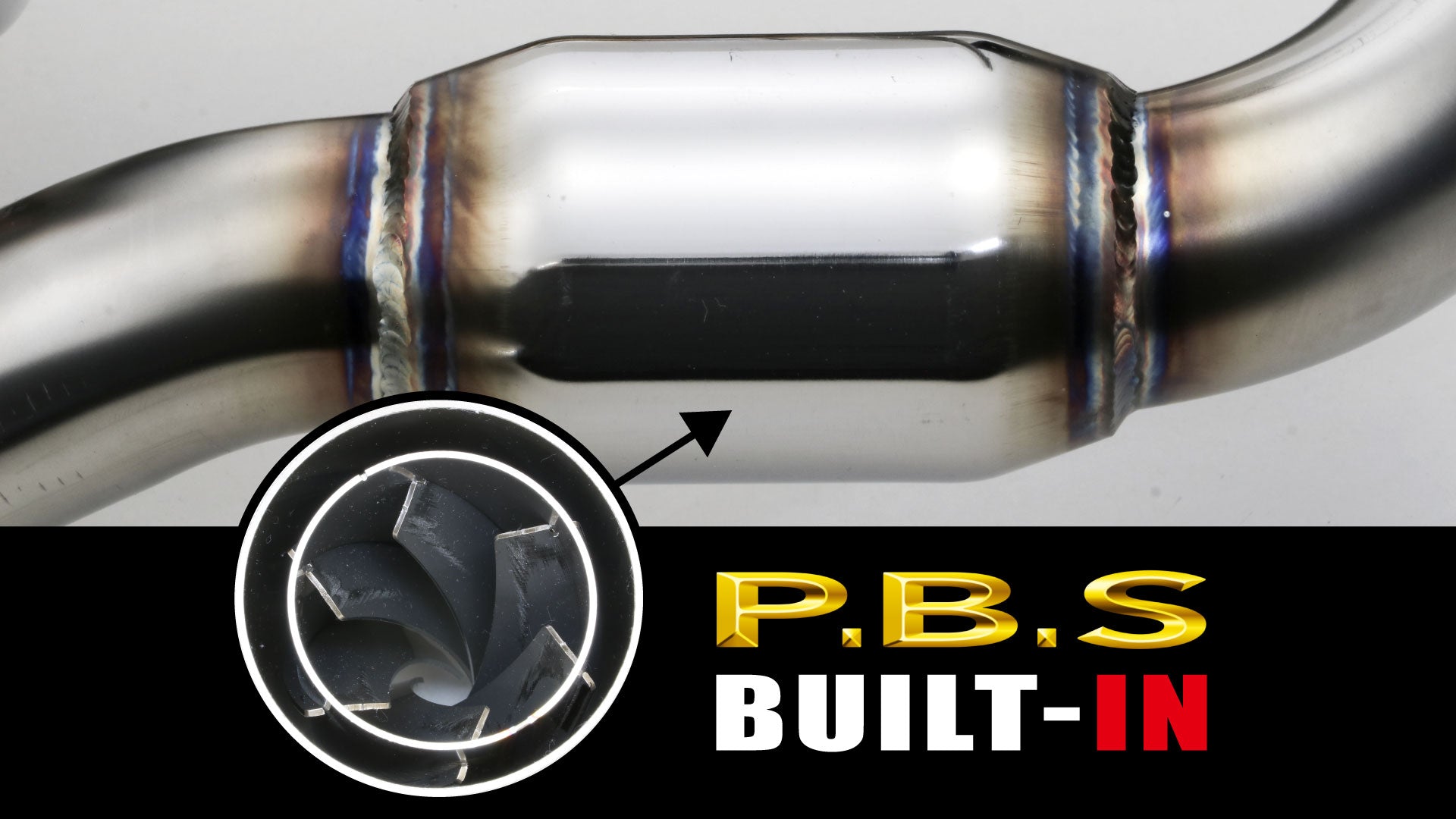

| Product Description | ◆Model name: Prius ◆Compatible grades etc.: HEV | Modellista Rear Skirt Exclusive (ELEGANT ICE STYLE | NEO ADVANCE STYLE) ◆Compatible vehicle model: 6AA-MXWH60 (Hybrid | 2WD) ◆Engine type: M20A-FXS (1,986cc) | 1VM ◆Compatible Year: 2023 (R5) .1~ ◆Brand Series: PASION EVO (with BUILD IN PBS) ◆Part number: PFS-004M ◆Idling volume (dB): 70 (Normal: 56) ◆Nearby exhaust noise (dB): 89 (Normal: 72) ◆Power (PS): 211.2 (Normal: 197.7) ◆Torque (kgf・m): 30.7 (Normal: 28.9) ◆Muffler weight (kg): 11.4 (Normal: 9.5) ◆Muffler ground clearance (empty vehicle): Bottom of piping (rear of front pipe) | 17.5cm - Bottom of silencer | 21.0cm - Bottom of tail | 14.0cm - - ▍Reference data (standard development vehicle height) - Front fender arch | 710mm - Rear fender arch | 700mm - *The above values are measurements from the ground. ◆Tail Diameter: W170×H45 Flat (double center) - -Tail material | Stainless steel (polished finish) - -Body material | Stainless steel ◆Pipe Diameter: φ50 ◆Accessory parts: Gasket G28 (1) | Flange nut M10 (1) | Bolt with washer M8X35 & flange nut M8 (3) | Earth line 200mm M10 terminal (1) | Clearance gauge (1) | Instruction manual ◆Genuine reused product: Taper gasket (1) | Special bolts & springs (2) | Rubber mounts (4) ◆Important Notes: *Other aero parts are unconfirmed. *Spiral fin is built-in type installed inside the pipe. *Silencer is woolless type. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
