¥134,191 JPY ¥143,000 JPY
| /
| Brand | GANADOR |

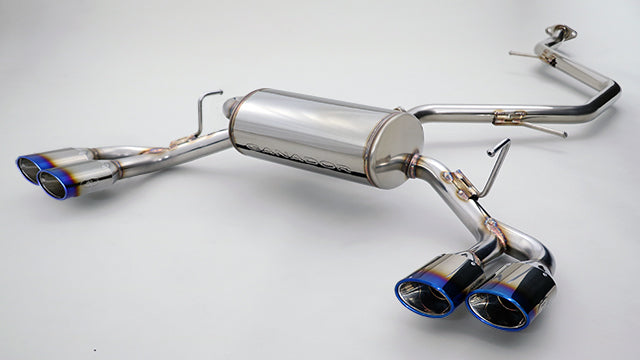

| Series Name | MUFFLER WITH CENTER PIPE |
| Product Number | PAE-085ST |

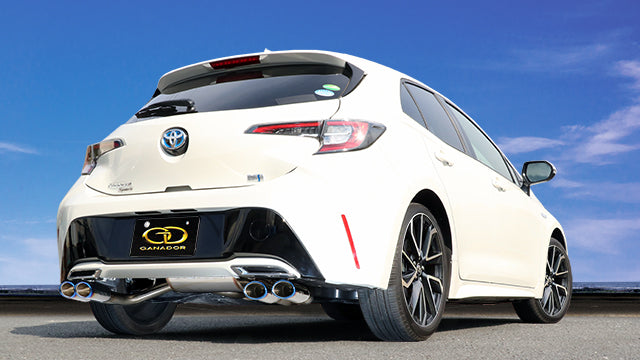

| Compatible Car | TOYOTA COROLLA SPORT 6AA-ZWE213H 6AA-ZWE211H 3BA-NRE210H |
| Compatible Engine | 2ZR-1NM 8NRT |
| Product Description | ◆Model name: Corolla Sport ◆Compatible grades etc.: Common to HYBRID G "Z" / HYBRID G / HYBRID G "X" and MODELLISTA aero kit (rear spats) / TRD aero parts set (rear side spoiler). ◆Compatible vehicle model: 6AA-ZWE213H / 6AA-ZWE211H ◆Engine type: 2ZR-FXE ◆Compatible Year: H30.6~R4.9 *Compatibility has also been confirmed for the partially improved model "6AA-ZWE213H" from R2.6 onwards. ◆Brand Series: PASION EVO (with PBS) ◆Part number: PAE-085ST ◆Idling volume (dB): GANADOR: 65.0 (Normal: 61.0) ◆Nearby exhaust noise (dB): GANADOR: 85.0 (Normal: 71.0) *Measured at 2,500 rpm due to rotation limiter operation. ◆Power (PS): GANADOR: 143.5 (Normal: 135.7) ◆Torque (kgf・m): GANADOR: 29.2 (Normal: 26.4) ◆Muffler weight (kg): GANADOR: 11.3 (Normal: 8.8) ◆Muffler ground clearance (empty vehicle): Tail bottom: 17.0cm / Silencer bottom: 19.5cm / Rear piping bottom: 16.0cm *Development vehicle reference data: Normal vehicle height *Front fender arch: 670mm / Rear fender arch: 675mm ◆Tail Diameter: 105X70φ Oval (4-pipe) *Only the tail section is made of titanium. ◆Pipe Diameter: 50.0φ ◆Accessory parts: M8X35 bolt with washer & M8 flange nut (3S) ・ M10 flange nut (1 pc.) ・ G28 gasket (1 pc.) ・ Earth line M10 x 200 mm (1 pc.) ・ Instruction manual ◆Genuine reused product: Special bolts and spring rubber mounts ◆Important Notes: *Common to hybrid and turbo gasoline vehicles 2WD 6MT / CVT *Common to HYBRID G "Z" / HYBRID G / HYBRID G "X" / G "Z" / G / G "X" grades and MODELLISTA aero kit (rear spats) / TRD aero parts set (rear side spoiler). |
| Notes | Images are for illustration purpose only. Actual product may vary. |
