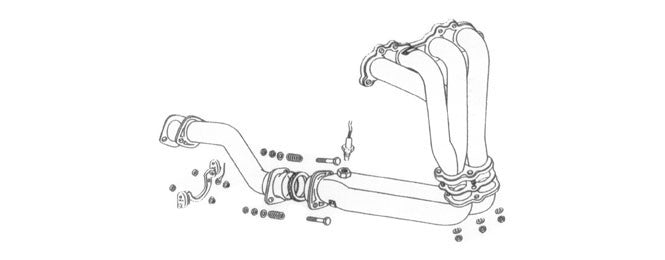

FUJITSUBO Super EX BASIC VERSION Headers For HU14 Bluebird SSS-Z 630-13465

FUJITSUBO

Brand
FUJITSUBO
Series Name
Super EX BASIC VERSION
Product Number
630-13465
Compatible Car
HU14 Bluebird SSS-Z
Compatible Model
HP11 Primera 2.0 Te-V minor after the body Model: GF-HP11 Engine type: SR20VE Year: 1998.09 ~ 2001.01 HU14 Bluebird SSS-Z Body Type: E-HU14 Engine type: SR20VE Year: H9.09 ~ 1998.09
Notices
Product orders SR20DE engine mounting not
Remarks
Minimum ground clearance and, detailed data are the values ______measured at the time of attachment to the Bluebird Regal R, a super EX set
Pipe diameter
45.0Ï_-50.8Ï_-60.5Ï_
Minimum ground clearance
Roof High 1385Mm (vehicle inspection 1390Mm) measuring drive, 138 mm in 2-1 support pipe rear flange portion
Accessories list
EX Mani Gasket Ã_ 1 Gasket packing Ã_ 2 60mm oil wrestling Ã_ 1 flexible joint screw set Ã_ 2 M8 nuts · SW set Ã_ 3 M10 Supesa Ã_ 2 Spring Ã_ flexible joint 2 insulating mat Ã_ 6 stainless steel wire Ã_ 19
Maximum output
Stock: 147.9kw (201.1ps) / 5920rpm -> Fujitsubo: 154.4kw (210.0ps) / 5550rpm
Maximum torque
Stock: 256.8N · m (26.2kg · m) / 5250rpm -> Fujitsubo: 277.3N · m (28.3kg · m) / 5080rpm
Weight
Stock: 15.3kg -> Fujitsubo: 8.2kg
Volume idling
Stock: 65dB -> Fujitsubo: 67dB
Middle RPM Sound
Stock: 76dB -> Fujitsubo: 78dB
High RPM Sound
Stock: 91dB -> Fujitsubo: 93dB
Mid RPM Acceleration Sound
Stock: 103dB -> Fujitsubo: 103dB
Notes
Images are for illustration purpose only. Actual product may vary.
