FUJITSUBO Wagolis For W30 · CW30 Largo 2WD minor before 460-17024

FUJITSUBO

Brand
FUJITSUBO
Series Name
Wagolis
Product Number
460-17024
Compatible Car
W30 · CW30 Largo 2WD minor before
Compatible Model
W30 · CW30 Largo 2WD minor after Body Type: E-W30 · E-CW30 Engine type: KA24DE Year: H8.10 ~ 1999.06 W30 · CW30 Largo 2WD minor before Body Type: E-W30 · E-CW30 Engine Type: KA24DE year: H5.05 ~ H8.10 NW30 · NCW30 Largo 4WD minor after body type: E-NW30 · E-NCW30 engine type: KA24DE year: H8.10 ~ 1999.06 NW30 · NCW30 Largo 4WD minor before body type: E -NW30 · E-NCW30 engine type: KA24DE year: H5.05 ~ H8.10
Notices
Product orders left W out minor front and rear common
Remarks
Detailed data is that of the NW30 4WD Highway Star
Exit shape
100Ï_ Round straight (II · W · left)
Pipe diameter
60.5Ï_
Minimum ground clearance
Roof height 1880mm (car verification 1920mm) measured in the car, 198mm at the rear muffler rear

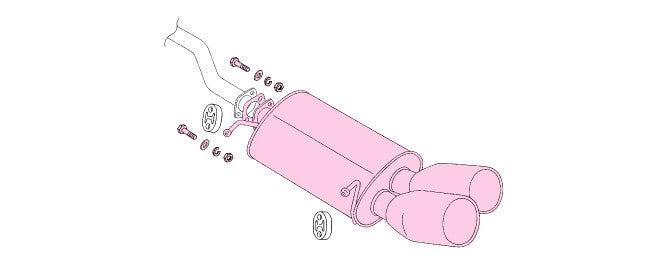

Accessories list
Gasket packing Ã_ 1 M10 Ã_ 35 bolts and nuts · SW · PW set Ã_ 2
Intermediate acceleration
Stock: 5.6 seconds -> Fujitsubo: 5.6 seconds
Maximum output
Stock: 96.3kw (131.0ps) -> Fujitsubo: 98.5kw (133.9ps)
Maximum torque
Stock: 205.8N · m (21.0kg · m) -> Fujitsubo: 211.7N · m (21.6kg · m)
Weight
Stock: 4.1kg -> Fujitsubo: 6.4kg
Volume idling
Stock: 60dB -> Fujitsubo: 66dB
Middle RPM Sound
Stock: 77dB -> Fujitsubo: 82dB
High RPM Sound
Stock: 89dB -> Fujitsubo: 91dB
Mid RPM Acceleration Sound
Stock: 101dB -> Fujitsubo: 98dB
Notes
Images are for illustration purpose only. Actual product may vary.
