FUJITSUBO Legalis K Exhaust For HE21S Alto Lapin SS 2WD 450-80614


Series Name
Legalis K
Product Number
Compatible Car
HE21S Alto Lapin SS 2WD
Compatible Model
HE21S Alto Lapin SS 2WD Body Type: TA-HE21S engine model: K6A Year: 2003.09 to 2007.05
Exit shape
96 Ã_ 91Ï_ round Oval slash
Pipe diameter
Minimum ground clearance
Roof height 1499mm (car verification 1490mm) measured in the car, 190mm at the rear muffler rear
Accessories list
Ring gasket Ã_ 2 M10 Ã_ 20 flange bolts and nuts set Ã_ 4 hanging rubber Ã_ 1
Intermediate acceleration
Stock: 2.8 seconds -> Fujitsubo: 2.7 seconds

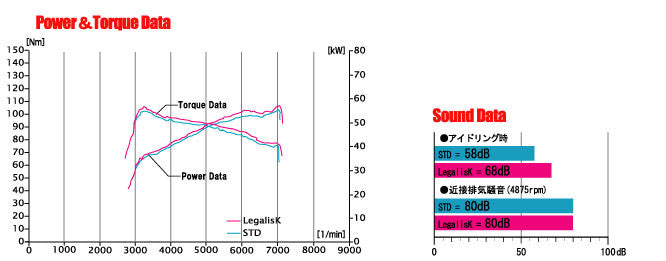

Maximum output
Stock: 53.2kw (72.4ps) / 6260rpm -> Fujitsubo: 54.8kw (74.5ps) / 6180rpm
Maximum torque
Stock: 102.9N · m (10.5kg · m) / 3280rpm -> Fujitsubo: 105.8N · m (10.8kg · m) / 3230rpm
Stock: 6.5kg -> Fujitsubo: 4.9kg
Volume idling
Stock: 58dB -> Fujitsubo: 68dB
Middle RPM Sound
Stock: 72dB -> Fujitsubo: 79dB
High RPM Sound
Stock: 80dB -> Fujitsubo: 78dB
Mid RPM Acceleration Sound
Stock: 90dB -> Fujitsubo: 85dB
Images are for illustration purpose only. Actual product may vary.
