FUJITSUBO Legalis K Exhaust For L910S Move Custom NA 4WD 450-70163


Series Name
Legalis K
Product Number
Compatible Car
L910S Move Custom NA 4WD
Compatible Model
L900S Move Custom NA 2WD Body Type: GF, GH, TA-L900S engine model: EF-VE Year: 1998.10 ~ 2001.10 L910S Move Custom NA 4WD Body Type: GF-L910S engine model: EF-VE Year: 1998.10 to 1999.11
Manufactured to order custom-only
Detailed data is that of the GF-L900S
Exit shape

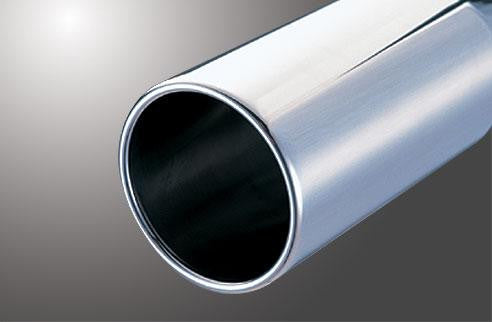

100Ï_ Round straight (II)
Pipe diameter
Minimum ground clearance
Roof height 1660mm (car verification 1670mm) measured in the car, 120mm in the muffler front
Accessories list
Ring gasket Ã_ 2 M10 Ã_ 20 flange bolts and nuts set Ã_ 4 M8 Ã_ 15 bolts, nuts, SW sets Ã_ 2 dedicated bracket Ã_ 2 insulating mat Ã_ 1 stainless steel wire (250 mm) Ã_ 5
Intermediate acceleration
Stock: 4.3 seconds -> Fujitsubo: 4.1 seconds
Maximum output
Stock: 36.8kw (50.0ps) / 7230rpm -> Fujitsubo: 38.5kw (52.4ps) / 7390rpm
Maximum torque
Stock: 58.8N · m (6.0kg · m) / 5060rpm -> Fujitsubo: 60.8N · m (6.2kg · m) / 5100rpm
Stock: 12.1kg -> Fujitsubo: 10.1kg
Volume idling
Stock: 55dB -> Fujitsubo: 67dB
Middle RPM Sound
Stock: 69dB -> Fujitsubo: 82dB
High RPM Sound
Stock: 79dB -> Fujitsubo: 90dB
Mid RPM Acceleration Sound
Stock: 88dB -> Fujitsubo: 101dB
Images are for illustration purpose only. Actual product may vary.
