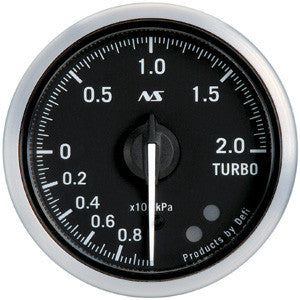

Defi Gauge Meter Advance RS Turbo Boost Meter (-100kPa to +200kPa) 52mm DF13501


Defi-Link Meter ADVANCE RS is a gauge series which needs to be connected to Defi-Link ADVANCE Control Unit (DF07703, sold separately).

ADVANCE RS is designed to match well with Japanese vintage cars with nostalgic features. The dial face is black and the numbers and tick marks are white. The night illumination is classic green and classic white(warm white). The color is switchable between two colors.

Defi RS Design

  • The gauge diameter is 52mm(except tachometer) and 80mm tachometer. Turbo 200kPa, intake manifold pressure, oil pressure, fuel pressure, oil temperature, water temperature, exhaust temperture, and tachometer are lined up.
  • The illumination color is green and warm white. The two colors can be switched. The brightness is turned down to make a nostalgic mood.
  • Nippon Seiki's NS logo is printed on the dial face instead of Defi logo. It's because the NS logo used to be printed on our OEM gauges.
  • The needle pointer is white while the illumination OFF and red while the illumination is ON.
  • One ADVANCE Control Unit operates up to 7 gauges or displays in total.

Main specifications, functions, and features

  • ADVANCE System
  • ADVANCE Control Unit necessary
  • Commercial attachment necessary
  • Stepping motor: STS26/VS2
  • Illumination color: changeable between classic green and classic white
  • Illumination ON/OFF: interlocked with vehicle illumination switch
  • LED illumination
  • Indicator output
  • Built-in indicators
  • Driving data can be recorded & replayed
  • Opening mode/Ending mode
  • Size: 52mm/80mm tachometer
  • Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
  • Mounting bracket attached
  • The illumination would be automatedly turned ON/OFF by connecting to ADVANCE ZD.


  • Turbo(200kPa)
  • Intake manifold pressure
  • Oil pressure
  • Fuel pressure
  • Oil temperature
  • Water temperature
  • Exhaust temperature
  • Tachometer


  • Design matches well with Japanese vintage cars with nostalgic features.
  • The night illumination color is switchable between classic green and classic white(warm white)
    RS Design
  • Interactive communication advanced system is implemented.
  • Gauges can be controlled from distance with the included switch unit.
  • Flat glass and precise graduation scale give more needle accuracy and high visibility.
  • Opening and closing modes can be selected from 2 variations.
  • The installation of additional gauges is easy. Just connect it with the other two gauges and attach the wire to Advance Control Unit.
  • The light-emitting gauge always provides clear visibility with high contrast.
  • The needle pointer driven by original stepping motor has a smooth instantaneous response to rapid acceleration of high performance vehicles.
  • The microcontroller calibrates up to 270 degree angle in 3027 - 4600 segments (0.088 degree - 0.059 degree), and provides accurate vehicle information.
  • Self-diagnosis system turns the warning LED on to indicate any wire disconnection, short circuit and serial communication errors.
  • Warning by buzzer sound when the warning LED is on (buzzer sound can be turned on / off).
    ADVANCE BF peak & warningThe picture is ADVANCE BF.
  • Peak value and warning value during driving are stored. Driving data can be stored and replayed up to 3 minutes.
  • A mounting bracket, meter cup, regular position bezel are provided with this product.
  • With both fuel pressure gauge and turbo installed, differential pressure can be monitored on the fuel pressure gauge screen.
