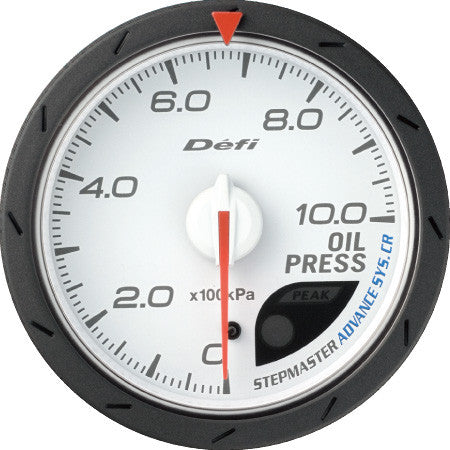

Defi Gauge Meter Advance CR Oil Pressure Meter (0kPa to 1000kPa) 60mm White DF08901

Defi-Link Meter ADVANCE CR is gauge series which need to be connected to Defi-Link ADVANCE Control Unit (DF07703, sold separately).

• Turbo/boost/in-mani, oil press, fuel press, oil temp, water temp, exhaust temp, and tachometer are available.
  Color: White and black dials are available.
  Size: 52mm and 60mm are available. (Only 60mm is available regarding turbo120kPa, in-mani, fuel press, exhaust temp, and tachometer.)
• Illumination color: Can be changed between two colors.
  White dial: Blue/Amber red
  Black dial: White/Amber red
• One ADVANCE Control Unit operates up to 7 gauges or displays in total.

Main specifications, functions, and features

• ADVANCE System
• ADVANCE Control Unit necessary
• Commercial attachment necessary
• Stepping motor: STS26/VS2
• Display color: dial white/black
• Illumination color: Black dial->white/red, White dial->blue/red
• Illumination ON/OFF: interlocked with vehicle illumination switch
• LED illumination
• Indicator output
• Built-in indicators
• Driving data can be recorded & replayed
• Opening mode/Ending mode
• Size: 52mm/60mm
• Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
• Mounting bracket attached
• The illumination would be automatedly turned ON/OFF by connecting to ADVANCE ZD.

Lineup

• Turbo(200kPa/120kPa)
• Intake manifold pressure
• Oil pressure
• Fuel pressure
• Oil temperature
• Water temperature
• Exhaust temperature
• Tachometer
