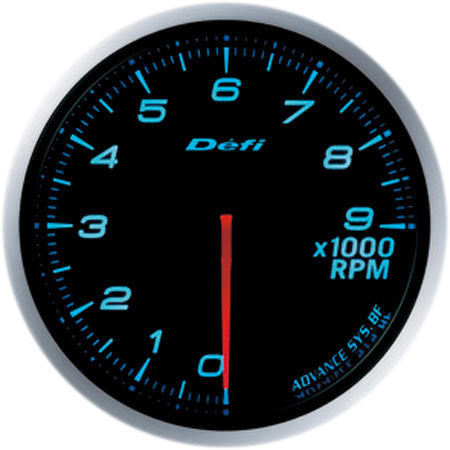

Defi Gauge Meter Advance BF Tachometer (0 to 9000RPM) 60mm Blue DF10706


Defi-Link Meter ADVANCE BF is gauge series which need to be connected to Defi-Link ADVANCE Control Unit (DF07703, sold separately).

ADVANCE BFs are electronic blacked out gauges which are high response and refined design. When the car is off they have a black face with no numbers on them. As soon as the car is turned on, the gauges light up and are in full affect.

  • Turbo/boost/in-mani, oil press, fuel press, oil temp, water temp, exhaust temp, and tachometer are available.
  • USDM models (Imperial unit) and JDM models (SI unit) are available.
  • Illumination color: JDM models are white, amber red, and blue (The illumination color cannot be changed). USDM models are amber red.
    ADVANCE BF illumination color
  • Size: all kinds of 60mm gauges and 80mm tachometer
  • One ADVANCE Control Unit operates up to 7 gauges or displays in total.

Main specifications, functions, and features

  • ADVANCE System
  • ADVANCE Control Unit necessary
  • Commercial attachment necessary
  • Stepping motor: STS26/VS2
  • Illumination color: white/amber red/blue (in USDM models, only amber red is available)
  • Illumination ON/OFF: interlocked with vehicle illumination switch
  • LED illumination
  • Indicator output
  • Built-in indicators
  • Driving data can be recorded & replayed
  • Opening mode/Ending mode
  • Size: 60mm/80mm tachometer
  • Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
  • Mounting bracket attached
  • The illumination would be automatedly dimmed by connecting to ADVANCE ZD.


  • Turbo(200kPa/120kPa)
  • Intake manifold pressure
  • Oil pressure
  • Fuel pressure
  • Oil temperature
  • Water temperature
  • Exhaust temperature
  • Tachometer


  • The product of Defi-Link ADVANCE SYSTEM cannot be connected with the product of Defi-Link SYSTEM. It is not compatible with the product of Defi-Link SYSTEM. Sensors are common in ADVANCE system and Defi-Link System except turbo sensor, but sensor wires are not common.
  • Defi-Link ADVANCE Control Unit is necessary to operate ADVANCE BF gauges (DF07703, sold separately).
