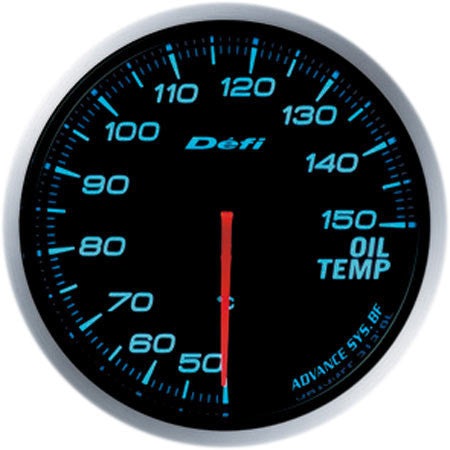

Defi Gauge Meter Advance BF Oil Temperature Meter (50 to 150 degrees C) 60mm Blue DF10403

Defi-Link Meter ADVANCE BF is gauge series which need to be connected to Defi-Link ADVANCE Control Unit (DF07703, sold separately).

ADVANCE BFs are electronic blacked out gauges which are high response and refined design. When the car is off they have a black face with no numbers on them. As soon as the car is turned on, the gauges light up and are in full affect.

• Turbo/boost/in-mani, oil press, fuel press, oil temp, water temp, exhaust temp, and tachometer are available.
• USDM models (Imperial unit) and JDM models (SI unit) are available.
• Illumination color: JDM models are white, amber red, and blue (The illumination color cannot be changed). USDM models are amber red.

• Size: all kinds of 60mm gauges and 80mm tachometer
• One ADVANCE Control Unit operates up to 7 gauges or displays in total.

Main specifications, functions, and features

• ADVANCE System
• ADVANCE Control Unit necessary
• Commercial attachment necessary
• Stepping motor: STS26/VS2
• Illumination color: white/amber red/blue (in USDM models, only amber red is available)
• Illumination ON/OFF: interlocked with vehicle illumination switch
• LED illumination
• Indicator output
• Built-in indicators
• Driving data can be recorded & replayed
• Opening mode/Ending mode
• Size: 60mm/80mm tachometer
• Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
• Mounting bracket attached
• The illumination would be automatedly dimmed by connecting to ADVANCE ZD.

Lineup

• Turbo(200kPa/120kPa)
• Intake manifold pressure
• Oil pressure
• Fuel pressure
• Oil temperature
• Water temperature
• Exhaust temperature
• Tachometer
