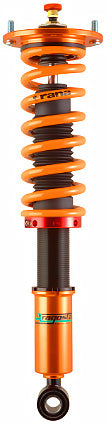

ARAGOSTA COMFORT CONCEPT TYPE-E WITH 2 ARAGOSTA CUPS FOR TOYOTA ALPHARD VELLFIRE AGH35W GGH35W AYH30W [2015.1~] 3AAA.TJ.E1.B00-2CUP

ARAGOSTA

COMFORT CONCEPT TYPE-E WITH 2 ARAGOSTA CUPS

3AAA.TJ.E1.B00-2CUP

TOYOTA ALPHARD VELLFIRE AGH35W GGH35W AYH30W [2015.1~]

Upper mount specifications (F,R): PA,RB
Spring rate (kgf) (F,R): 11, (10)
Down amount (mm) (F,R): 40,35
Overall length adjustment (mm) (F,R): +30/-17, +20/-20
Shock configuration (material/type/configuration) (F,R): ST/positive/CO, ST/positive/CS

Upper mounts: ● PA → Adjustable pillow ball upper mounts ● PR → Fixed pillow ball upper mounts ● RG → Fixed reinforced rubber upper mounts ● RB → Upper and lower rubber bushings ● Genuine → Uses genuine upper mounts
Spring rate: ● ( ) markings → Exclusive genuine shape Lowering amount: ● Lowering amount from the test vehicle's genuine height Shock configuration: ● CO → Integrated coilover ● CS → Shock and spring placed separately, separate type
Shock configuration: ● ST → Material: Steel hard chrome plated + WPC processed or cation coated ● AL → Material: Aluminum Kashima coated ● Forward → Upright shock ● Inverted → Inverted shock

Images are for illustration purpose only. Actual product may vary.
