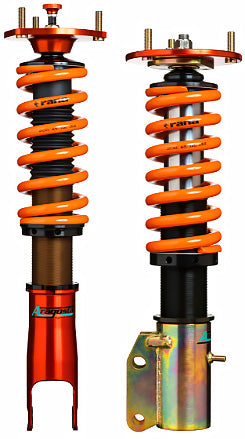

Home Products ARAGOSTA SPORTS CONCEPT TYPE-S FOR FIAT ABARTH 500 595 (C) ABARTH 500 595 (312) 0.9L 1.2L 1.4L [2007.8~] 3AA.FI7.A1.111
ARAGOSTA SPORTS CONCEPT TYPE-S FOR FIAT ABARTH 500 595 (C) ABARTH 500 595 (312) 0.9L 1.2L 1.4L [2007.8~] 3AA.FI7.A1.111

ARAGOSTA SPORTS CONCEPT TYPE-S FOR FIAT ABARTH 500 595 (C) ABARTH 500 595 (312) 0.9L 1.2L 1.4L [2007.8~] 3AA.FI7.A1.111

¥379,913 JPY ¥435,600 JPY

| /

Brand
ARAGOSTA
Series Name
SPORTS CONCEPT TYPE-S
Product Number
3AA.FI7.A1.111
Compatible Car
FIAT ABARTH 500 595 (C) ABARTH 500 595 (312) 0.9L 1.2L 1.4L [2007.8~]
Product Description
Upper mount specifications (F,R): PA,RB
Spring rate (kgf) (F,R): 7, (4)
Down amount (mm) (F,R): 10,35
Overall length adjustment (mm) (F,R): +35/-20, +15/-15
Shock configuration (material/type/configuration) (F,R): ST/down/CO, AL/forward/CS
Remarks
Upper mounts: ● PA → Adjustable pillow ball upper mounts ● PR → Fixed pillow ball upper mounts ● RG → Fixed reinforced rubber upper mounts ● RB → Upper and lower rubber bushings ● Genuine → Uses genuine upper mounts
Spring rate: ● ( ) markings → Exclusive genuine shape Lowering amount: ● Lowering amount from the test vehicle's genuine height Shock configuration: ● CO → Integrated coilover ● CS → Shock and spring placed separately, separate type
Shock configuration: ● ST → Material: Steel hard chrome plated + WPC processed or cation coated ● AL → Material: Aluminum Kashima coated ● Forward → Upright shock ● Inverted → Inverted shock
Notes
Images are for illustration purpose only. Actual product may vary.
