¥145,497 JPY
| /

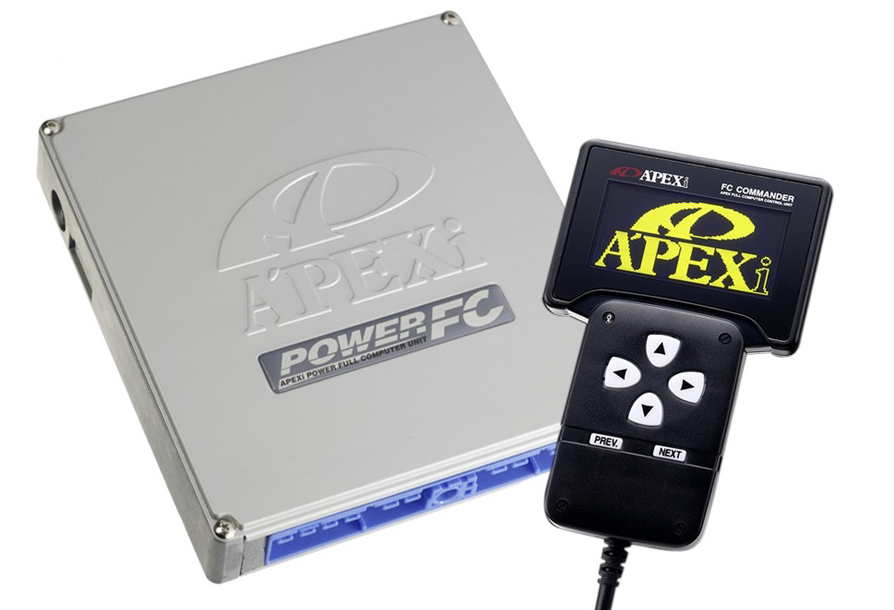

| Product Name | Power FC & Commander Set |
| Code No. | 414BT007 |
Monitor Mode |
In Monitor Mode, the Commander can display up to 10 parameters of data in real time: Engine RPM / Ignition Timing / Vehicle Speed / Air Flow Voltage (Pressure Sensor Voltage) / Injector Duty Cycle / Boost / Knocking Level / Battery Voltage / Intake Air Temp. |
| Setting Mode | Setting Mode allows full access to the 20x20 ignition timing and fuel correction maps. The user can adjust any portion of this map in 5C 5 sections using the FC Commander Hand-held controller. Full 20x20 map resolution can be seen using the FC Commander. |
| ETC Mode | The ETC Menu contains utility parameters such as: Version information / Sensor Check / Function Select / OLED screen Brightness / Initialization of all Data. In addition, the ETC Mode allows the user to monitor all factory sensors through one sc. |
| Maker | TOYOTA |
| Vehicle | CELICA |
| Model | ZZT231 |
| Engine | 2ZZ-GE |
| Model Year | 99/09 - 06/04 |
| Code No. (Commander) | 415-A030 |
| Code No. (Boost Control Kit) | - |
| Remarks | Commander Extension Cable (415-XA02) is required. |
