ARAGOSTA SPORTS CONCEPT TYPE-S FOR FIAT X1 9 1.3 1.5 [1973-1982] 3AA.FI6.A1.000

ARAGOSTA

SPORTS CONCEPT TYPE-S

3AA.FI6.A1.000

FIAT X1 9 1.3 1.5 [1973-1982]

Upper mount specifications (F,R): PA,PA
Spring rate (kgf) (F,R): 4,5
Down amount (mm) (F,R): 25,25
Overall length adjustment (mm) (F,R): +40/-10, +40/-10
Shock configuration (material/type/configuration) (F,R): ST/positive/CO, ST/positive/CO

Upper mounts: ● PA → Adjustable pillow ball upper mounts ● PR → Fixed pillow ball upper mounts ● RG → Fixed reinforced rubber upper mounts ● RB → Upper and lower rubber bushings ● Genuine → Uses genuine upper mounts
Spring rate: ● ( ) markings → Exclusive genuine shape Lowering amount: ● Lowering amount from the test vehicle's genuine height Shock configuration: ● CO → Integrated coilover ● CS → Shock and spring placed separately, separate type
Shock configuration: ● ST → Material: Steel hard chrome plated + WPC processed or cation coated ● AL → Material: Aluminum Kashima coated ● Forward → Upright shock ● Inverted → Inverted shock

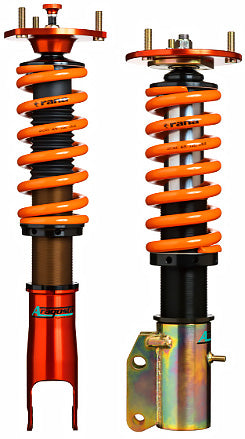

Images are for illustration purpose only. Actual product may vary.
