¥25,181 JPY ¥31,680 JPY
| /
Brand | LAILE BEATRUSH |
Series Name | FRONT PILLOWBALL TOP MOUNT |
Product Number | S136016TM-FPA |
Compatible Car | 86 ZN6 BRZ ZC6 IMPREZA WRX GDB GDA |

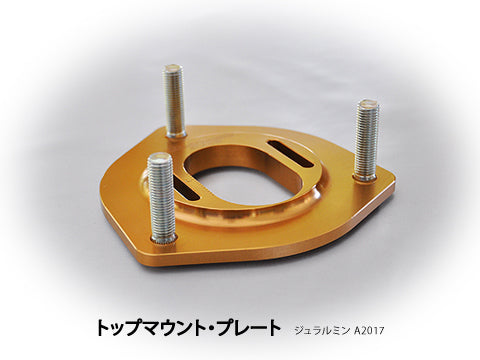

Product Description | As for a top mount of a camber adjustment way , it’s possible to adjust the camber angle by moving the bearing location. For that, it’s necessary to make a long hole with the big migration shere part of the bearing on a plate of a top mount. But, the load transmitted from a damper may be big external force as much as how many times of the axle load forcusing on a bearing of a top mount depending on the run situation. Therefore a plate of a top mount is transformed so that a long hole for a camber adjustment may be rolled up. Beatrush pillow ball top mount to make the weak point of such camber adjustment system up, i.e. the thickness of the plate is made double compared with items in the past (It’s different depending on the car types.) and only an installation part with the body is to cut, and the bearing location falls and a stroke of a damper doesn’t decrease.A bearing cover, a pillow ball nut and a pillow ball collar are made by shaving carbon steel with a stickiness (S45C) with a highly precise CNC lathe. The pillow ball collar is used for a bearing by insertion like a pillow ball nut.。 Specifications: Plate:Super-duralumin A2017 Bearing:The spherical bearing(MBWT18) is used by the Minebea Company. Bearing case:Steel ( S45C ) Nut & collar:Steel ( S45C ) Installation: Bolt on. |
Notes | Images are for illustration purpose only. Actual product may vary. |
