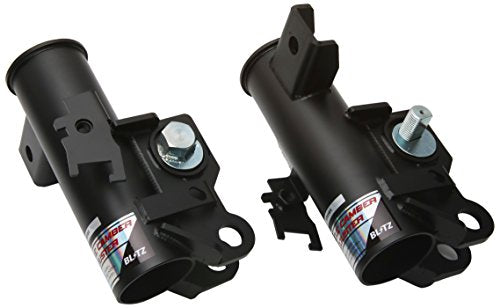

BLITZ MIRACLE CAMBER ADJUSTER Front For TOYOTA HARRIER G's ZSU60W 3ZR-FAE 92004

BLITZ

Brand
BLITZ
Product Name
MIRACLE CAMBER ADJUSTER Front
Product Number
92004
Compatible Car
TOYOTA HARRIER G's ZSU60W
Compatible Engine
3ZR-FAE
Product Description
Model Year: 15 / 01-
Chassis Model: ZSU60W
Product Name: MIRACLE CAMBER ADJUSTER Front
camber adjustable range (Camber): -5 ° 00 '~ 0 ° 00'
DAMPER ZZ -R mounted vehicle height adjustment range: -45 ~ 0
Description: the camber angle of the suspension can be freely and easily changed, DAMPER ZZ-R series dedicated option bracket. And for a front corresponding to
strut suspension, set by vehicle type and for rear mounting on the lower arm mounting portion.
hole shape by type of vehicle dedicated bracket employing the eccentric cam and by moving the dedicated bolt accordingly, can be adjusted camber angle in a simple and wide range stepless.
freely by the camber angle can be adjusted, optimized ground conditions of the tire during low down width of alignment is widened, improving running performance, suppression of uneven wear, also adjustment at wide wheel mounting easy. Stay to secure the
brake hose and ABS line is also standard equipment. Possible bolt mounted so Some models are also optimized mounting position of the stabilizer link.
Rear is by optimizing the position of the lower arm, it improved running performance by extending the same time the suspension of the motion and to correct the roll center.

Remarks
2WD, elegance G's
Notes
Images are for illustration purpose only. Actual product may vary.
