¥142,479 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC S IMPORT COILOVER KIT |
| Product Number | 01011242012-QQ-1 |
| Compatible Car | VOLKSWAGEN GOLF TOURAN 1TCTH 2WD |

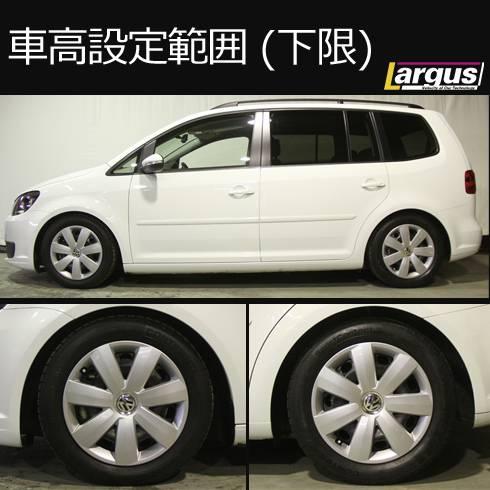

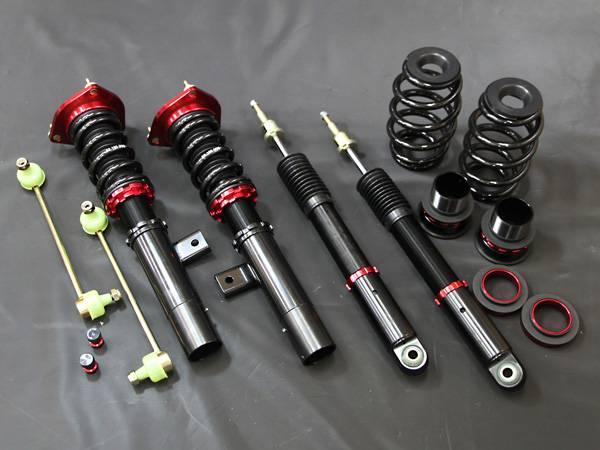

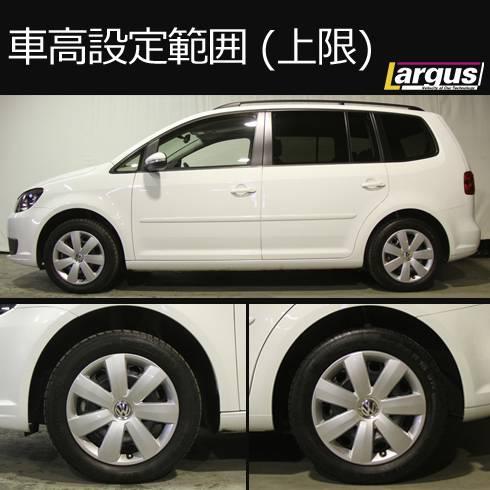

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Import Manufacturer: Volkswagen Model: GOLF Touran Vehicle model: 1TCTH Year: 2004/4 - 2016/1 Drive system: 2WD Spring rate (F): 6.5kg Spring rate (R): 6kg Free length (F): 180mm Free length (R): 200mm Upper mount (F): Fixed reinforced rubber Upper mount (R): Mountless Fdamping position: Special Fdamping position (R): Disc type (inside wheelhouse) Fheight adjustment range: 633mm - 695mm Rheight adjustment range (R): 632mm - 687mm Lowering amount (F): -54mm to +8mm Down R: -78mm to -5mm |

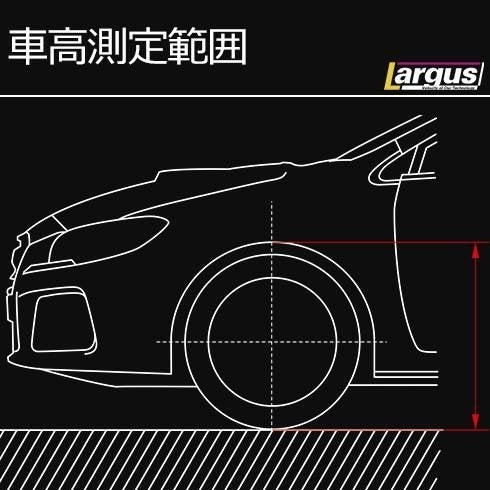

| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
