¥116,406 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209118-QQ-1 |
| Compatible Car | LEXUS ES300H AXZH10 2WD |

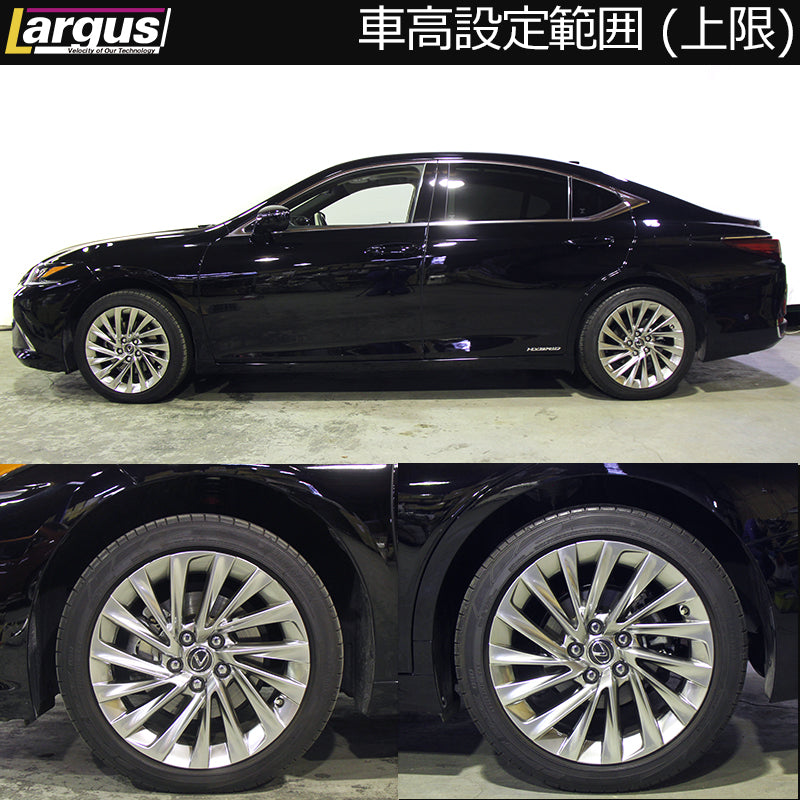

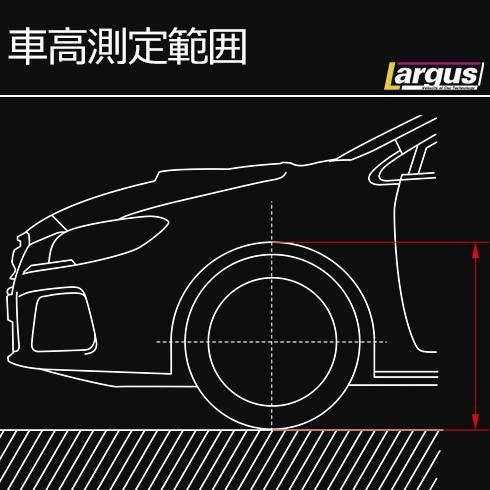

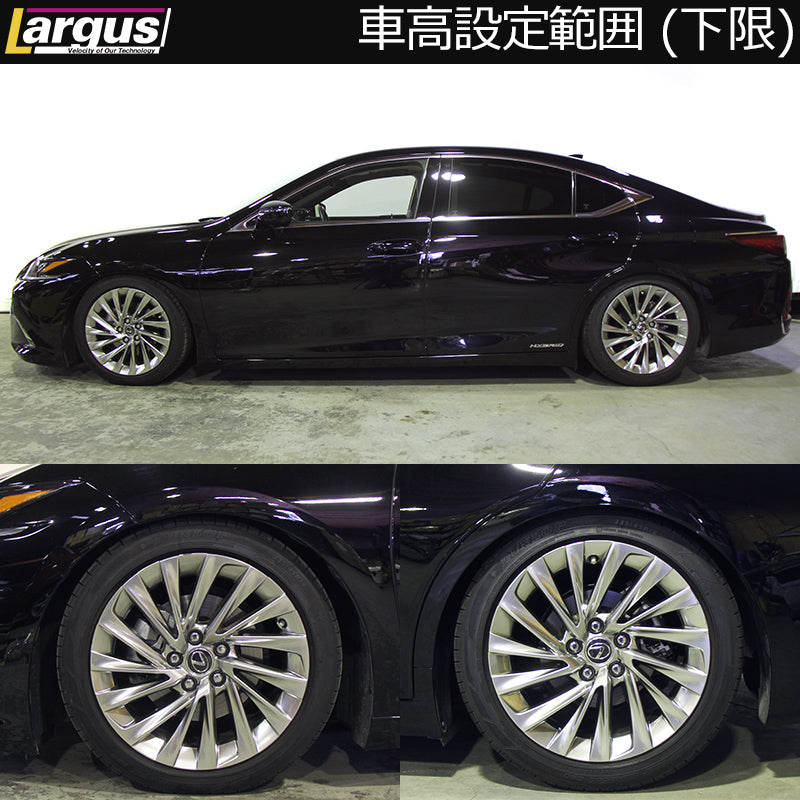

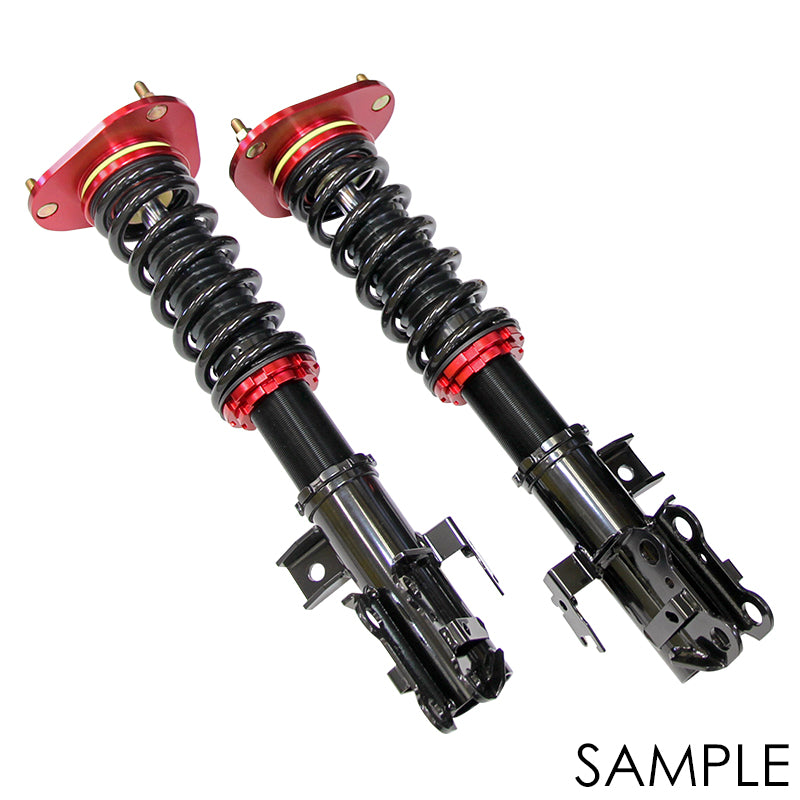

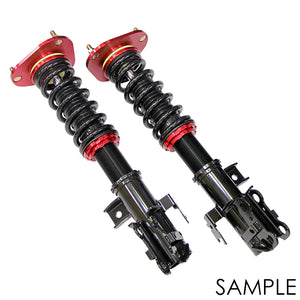

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: LEXUS Model: ES300h Vehicle model: AXZH10 Year: 2018/10-2020/08 Drive system: 2WD Frequency: 6kg Rear: 5kg Free length: F: 230mm Free length: 240mm Front upper mount: Mountless Rear upper mount: Mountless Frequency damping position: Fixed dial (upper upper mount) Rear damping position: Separate dial (upper upper mount) Front height adjustment range: 637mm-709mm Rear height adjustment range: 661mm to 711mm F Lowering Amount: -72mm to 0mm R Lowering Amount: -54mm to -4mm |
| Remarks | Although installation on vehicles equipped with AVS is possible, the warning light will come on and the AVS function will be disabled, so please prepare a separate canceller before installation. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles equipped with adaptive shock absorbers (electronically controlled dampers, etc.), the warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
