¥131,981 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209112-QQ-4 |
| Compatible Car | LEXUS IS350 GSE31 2WD |

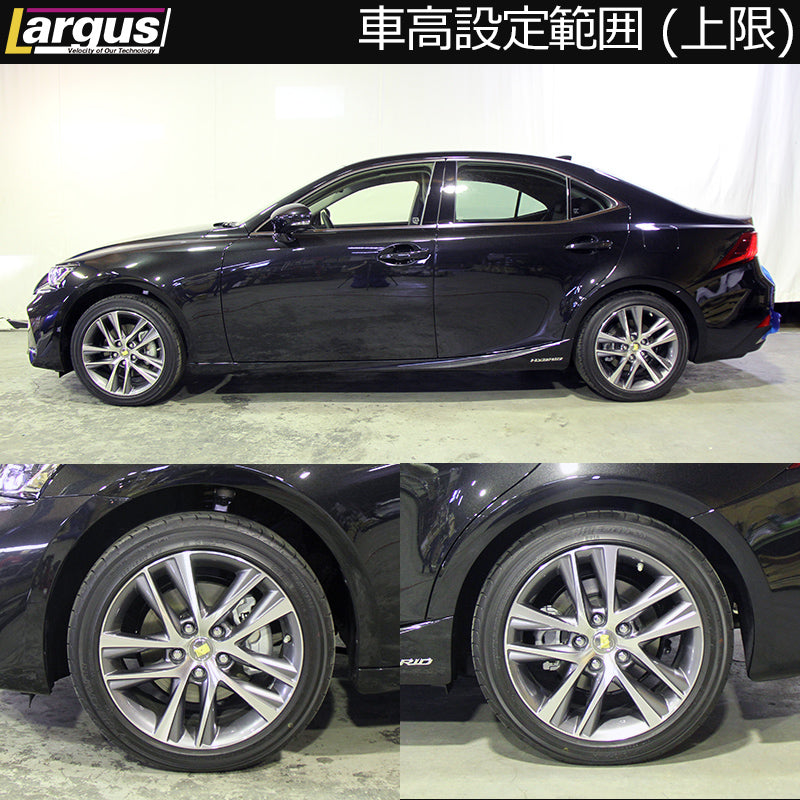

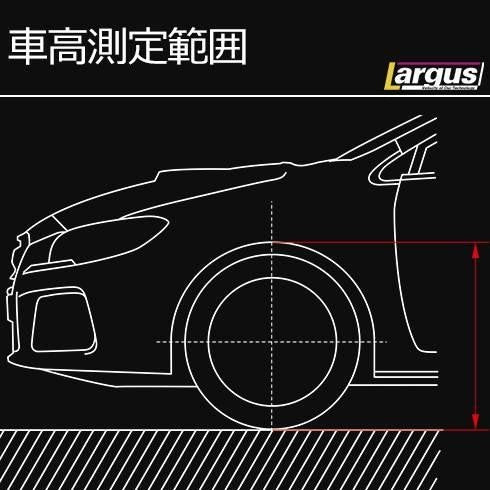

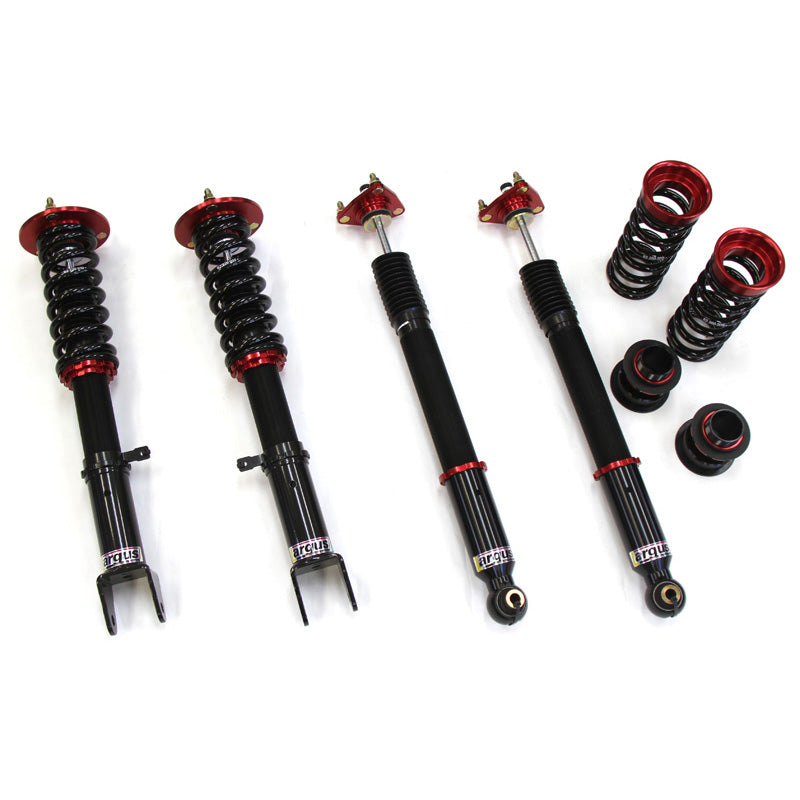

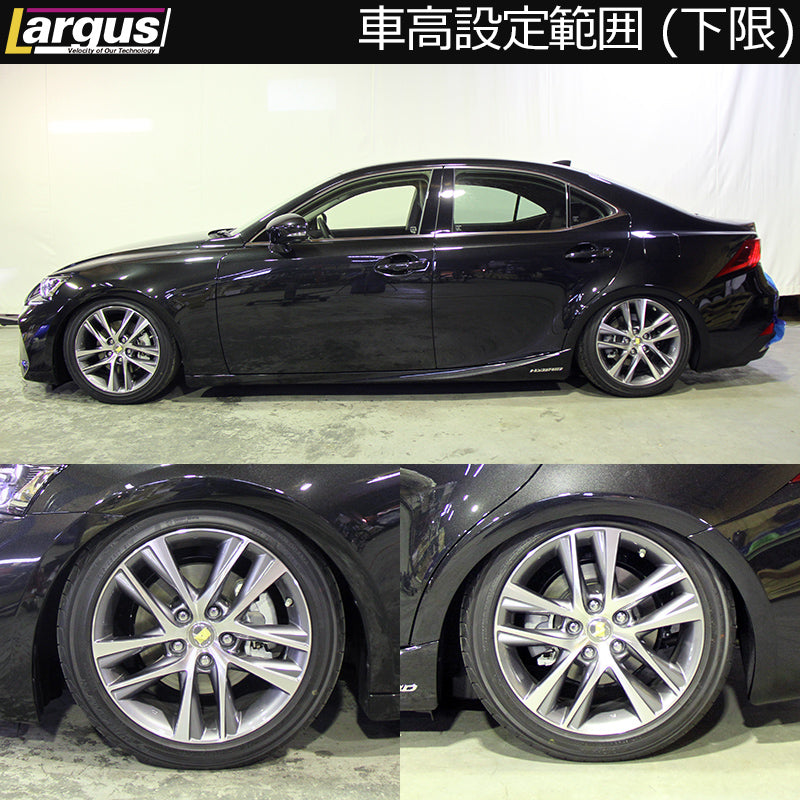

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: LEXUS Model: IS350 Vehicle model: GSE31 Year: - Drive system: 2WD Spring rate (Front): 9kg Spring rate (Rear): 9kg Free length (Front): 240mm Free length (Rear): 210mm Upper mount (Front): Fixed reinforced rubber Upper mount (Rear): Fixed reinforced rubber Damping position (Front): Fixed with dial (upper upper mount) Damping position (Rear): Fixed with dial (upper upper mount) Vehicle height adjustment range (Front): 600mm - 684mm Vehicle height adjustment range (Rear): 590mm - 671mm Lowering amount (Front): -71mm to +13mm Down R: -70mm to +11mm |
| Remarks | *For models manufactured after October 2016 (after minor changes). The vehicle height adjustment range and lowering amount are based on the AVE30 data. *Includes two 350mm damping force adjustment dial extension cables. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles equipped with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
