¥104,177 JPY
| /
| Brand | LARGUS |

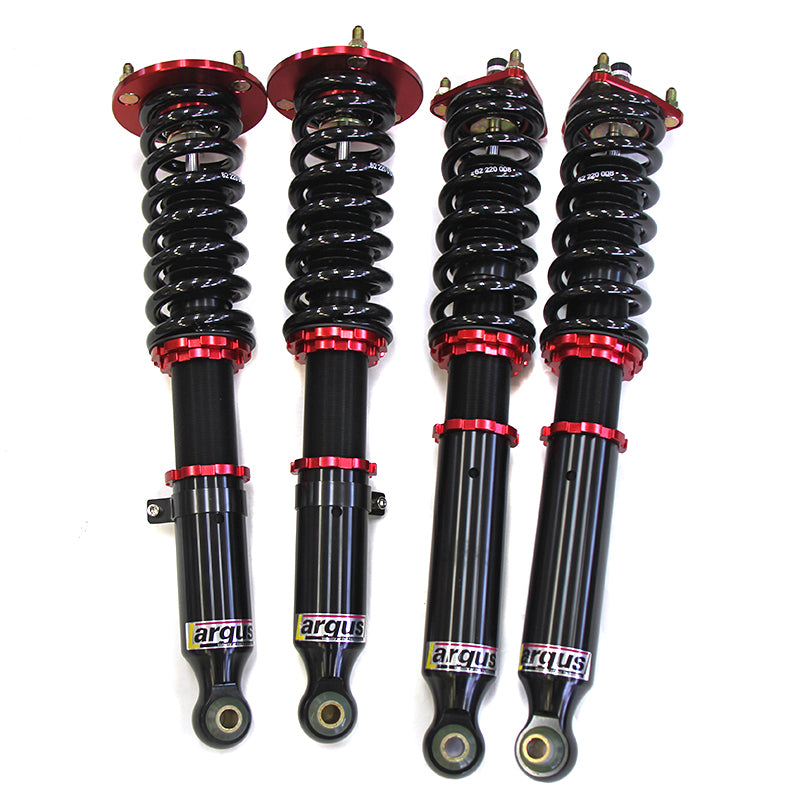

| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011209011-QQ-1 |
| Compatible Car | LEXUS IS-F USE20 2WD |

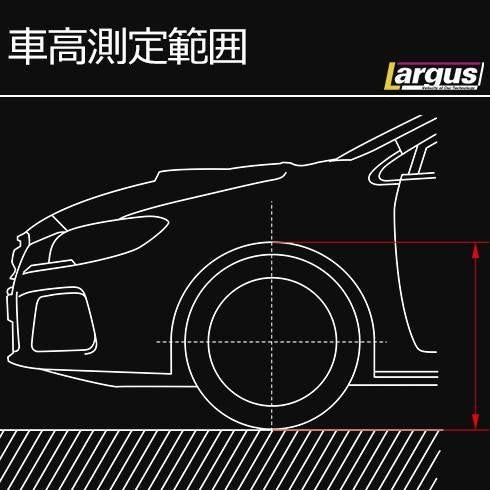

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: LEXUS Model: IS-F Vehicle model: USE20 Year: 2007/12-2014/05 Drive system: 2WD Frequency: 10kg Rear: 8kg Free length: F: 220mm Free length: R: 220mm Front upper mount: Fixed reinforced rubber Rear upper mount: Fixed reinforced rubber Front damping position: Fixed with dial (upper part of upper mount) Rear damping position: Fixed with dial (upper part of upper mount) Front height adjustment range: 579mm-703mm Rear height adjustment range: 596mm to 692mm F Lowering Amount: -100mm to +24mm R Lowering Amount: -74mm to +22mm |

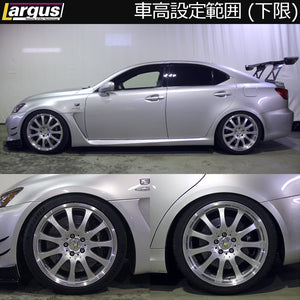

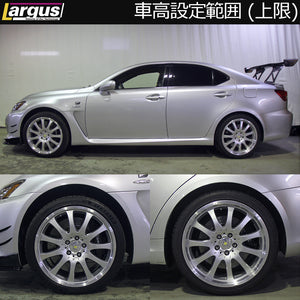

| Remarks | *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other countermeasure will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
