¥113,753 JPY
| /
| Brand | LARGUS |
| Series Name | SPEC S COILOVER KIT |
| Product Number | 01011202018-QQ-2 |
| Compatible Car | SUBARU FORESTER SKE 4WD |

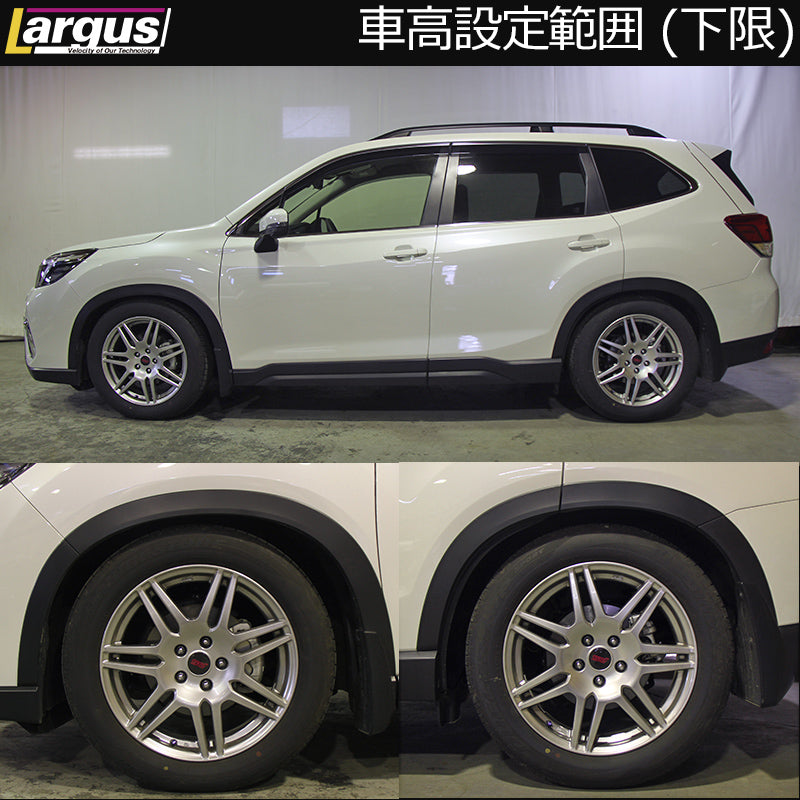

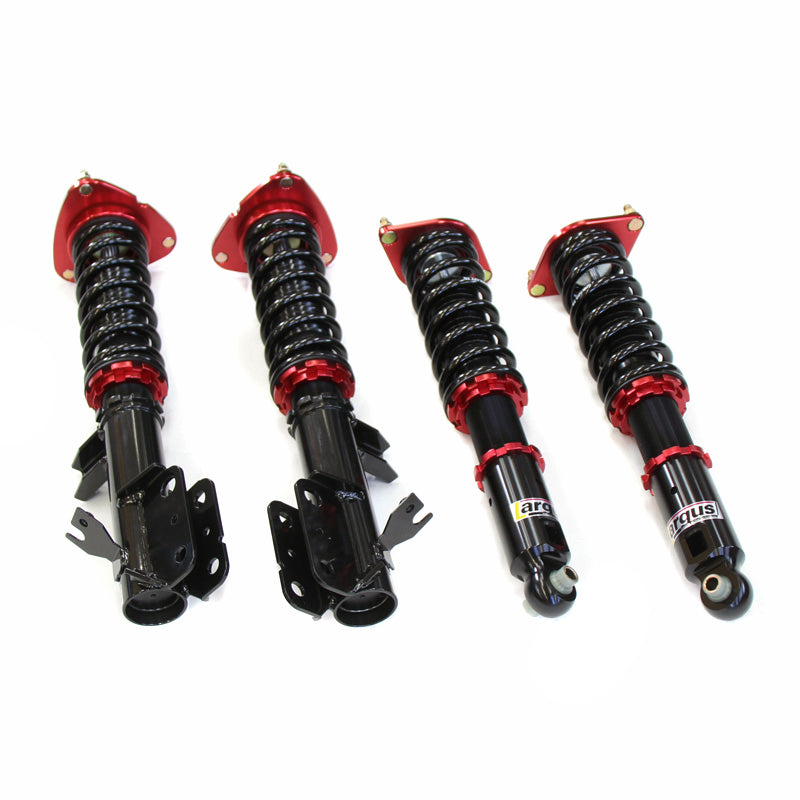

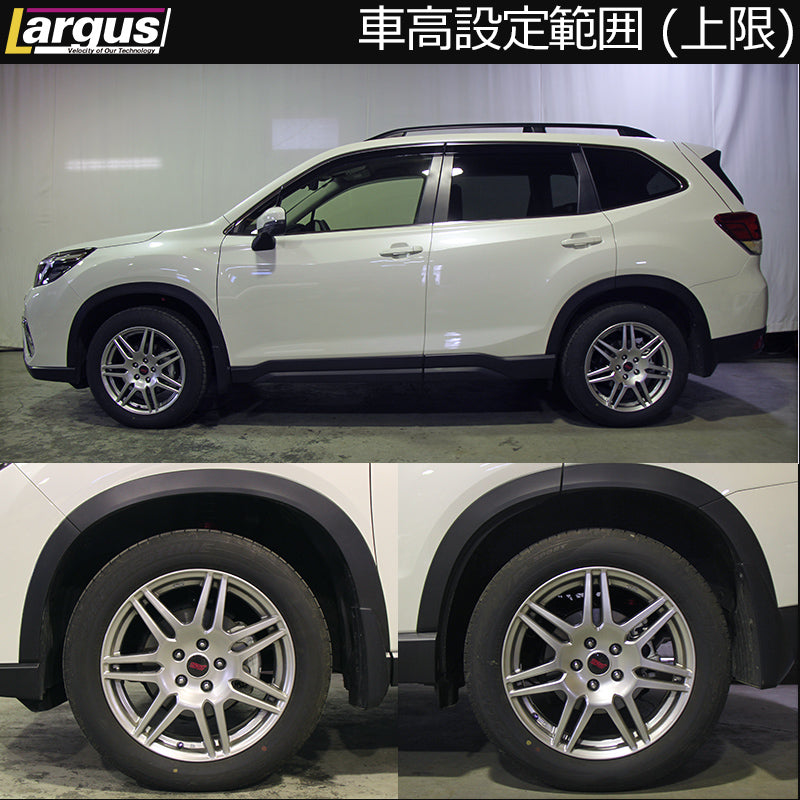

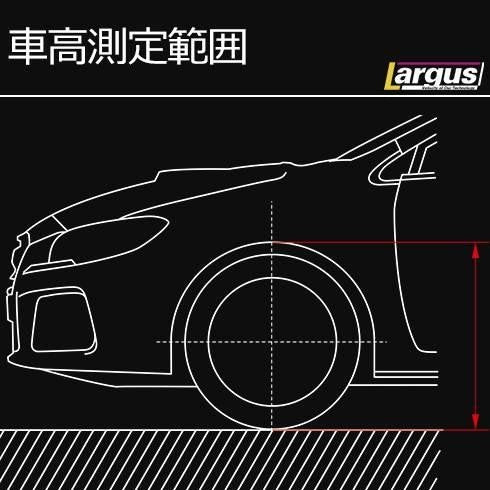

| Product Description | Product: Full-length adjustable suspension kit Type: SpecS Manufacturer: SUBARU Vehicle: Forester Vehicle model: SKE Year: 2018/09~ Drive system: 4WD Frequency: 5kg Rear: 5kg Free length: 220mm Free length: 220mm Front upper mount: Fixed reinforced rubber Rear upper mount: Fixed reinforced rubber Front damping position: Fixed with dial (upper part of upper mount) Rear damping position: Fixed with dial (upper part of upper mount) Front height adjustment range: 701mm - 768mm Rear height adjustment range: 735mm - 792mm Lowering amount: -61mm to +6mm Down R: -57mm to 0mm |
| Remarks | *The upper part of the rear shock absorber (damping dial) interferes with the service hole panel, so installing the panel requires drilling or removing the damping dial. The vehicle height adjustment range and lowering amount are based on SK9 data. *The vehicle height setting range, lowering amount, and installation images are reference values based on the development vehicle. There may be discrepancies due to individual vehicle differences and assembly conditions. *For vehicles with adaptive shock absorbers (electronically controlled dampers, etc.), a warning light will come on, so a separate canceller or other solution will be required. *The specifications and accessories of this product are subject to change without notice for improvement purposes. CAN ONLY BE SHIPPED WITH UPS OR FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
