¥282,275 JPY ¥327,800 JPY
| /
| Brand | HKS |

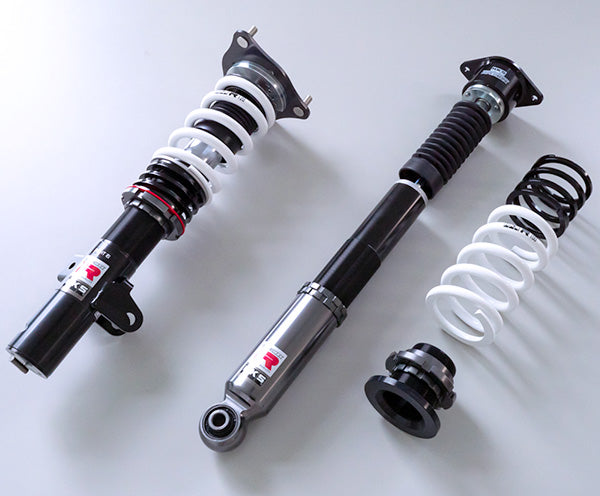

| Series Name | HIPERMAX R SERIES COILOVERS SUSPENSION TYPE |
| Product Number | 80310-AH003 |
| Compatible Car | HONDA CIVIC TYPE R FK8 |
| Compatible Engine | K20C |
| Product Description | Year Mode: 17/09-22/08 FULL KIT SETTING SPRING RATE F/R N/MM (KGF/MM): F=118(12)/R=98(10) FREE LENGTH F/R MM: 150/150 DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N F: STRETCH SIDE/SHRINK SIDE: 1172/530 DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N R: RETENTION SIDE/RETRACTION SIDE: 294/280 VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) FRONT: -23(-11 - -39) VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) REAR: -28(-3 - -52) |
| Remarks | This kit is for CIVIC TYPE R, which is not able to adopt on other grades of CIVIC.*Error is displayed when the stock dampers are removed.An optional canceller is required to avoid the error display. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
