¥205,622 JPY ¥273,900 JPY
| /
| Brand | HKS |

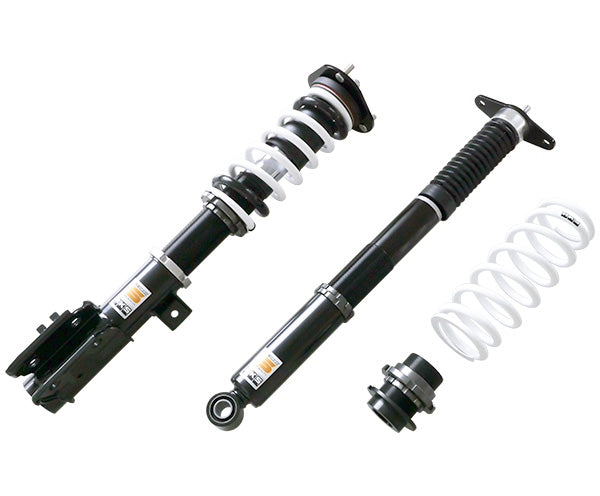

| Series Name | HIPERMAX S SERIES COILOVERS SUSPENSION TYPE |
| Product Number | 80300-AZ202 |
| Compatible Car | MAZDA CX-5 KE2AW |
| Compatible Engine | SH-VPTS |
| Product Description | Year Mode: 12/02-17/02 FULL KIT SETTING SPRING RATE F/R N/MM (KGF/MM): F=49(5) / R=39(4) FREE LENGTH F/R MM: 250(BARREL)/250(BARREL) DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N F: STRETCH SIDE/SHRINK SIDE: 495/201 DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N R: RETENTION SIDE/RETRACTION SIDE: 250/137 VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) FRONT: -36(-12 - -84) VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) REAR: -54 (-22 - -92) |
| Remarks | Gasoline car not confirmed Can only be shipped with UPS or FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
