¥254,343 JPY ¥338,800 JPY
| /
| Brand | HKS |

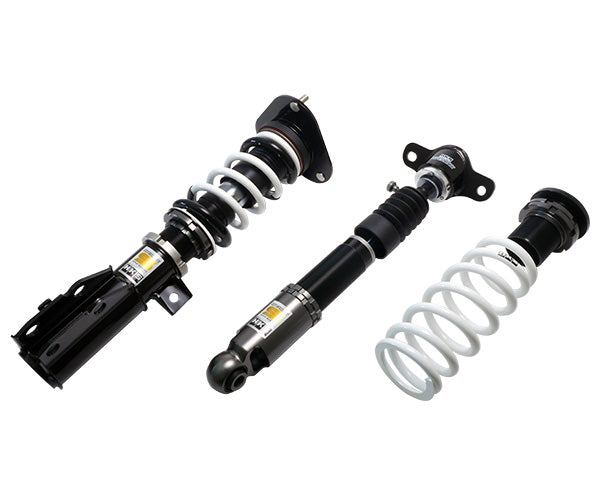

| Series Name | HIPERMAX S SERIES COILOVERS SUSPENSION |
| Product Number | 80300-AT029 |
| Compatible Car | TOYOTA PRIUS MXWH60 |
| Compatible Engine | M20A-FXS |
| Product Description | Year Model: 22/12 - Full Kit Setting Spring: Spring rate N/mm (kgf/mm) - F=49(5.0)/R=59(6.0) FREE LENGTH F/R MM: 200/220 DAMPING FORCE PISTON SPEED 0.1M/SEC: F= 481/412 ; R=382/471 Factory Dial Position F;R: F=15/R=15 Damper remaining stroke (extension side/contraction side) mm F;R: F= 52/54 ; R=52/52 VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT):FRONT =297(330 - 272); REAR = 254(276-235) |
| Notes | Images are for illustration purpose only. Actual product may vary. |
