¥199,841 JPY ¥266,200 JPY
| /
| Brand | HKS |

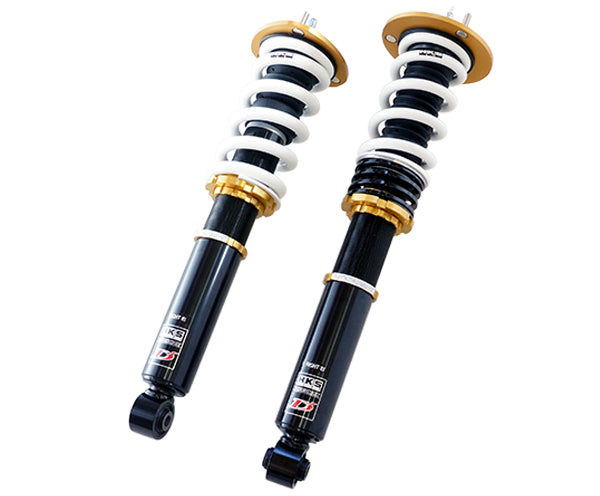

| Series Name | HIPERMAX D' NOBSPEC SERIES COILOVERS SUSPENSION TYPE |
| Product Number | 80015-AT101 |
| Compatible Car | TOYOTA CHASER JZX90 |
| Compatible Engine | 1JZ-GTE |
| Product Description | Year Mode: 92/10-96/08 FULL KIT SETTING SPRING RATE F/R N/MM (KGF/MM): F=157(16)/R=98(10) FREE LENGTH F/R MM: 200/170 DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N F: STRETCH SIDE/SHRINK SIDE: 3413/1167 DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N R: RETENTION SIDE/RETRACTION SIDE: 917/713 VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) FRONT: -11(0 - -89) VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) REAR: -6(0 - -94) |
| Remarks | Vehicle height data is for JZX100 (1JZ-GTE). Can only be shipped with UPS or FEDEX |
| Notes | Images are for illustration purpose only. Actual product may vary. |
