¥805,147 JPY ¥858,000 JPY
| /
| Brand | SPOON |

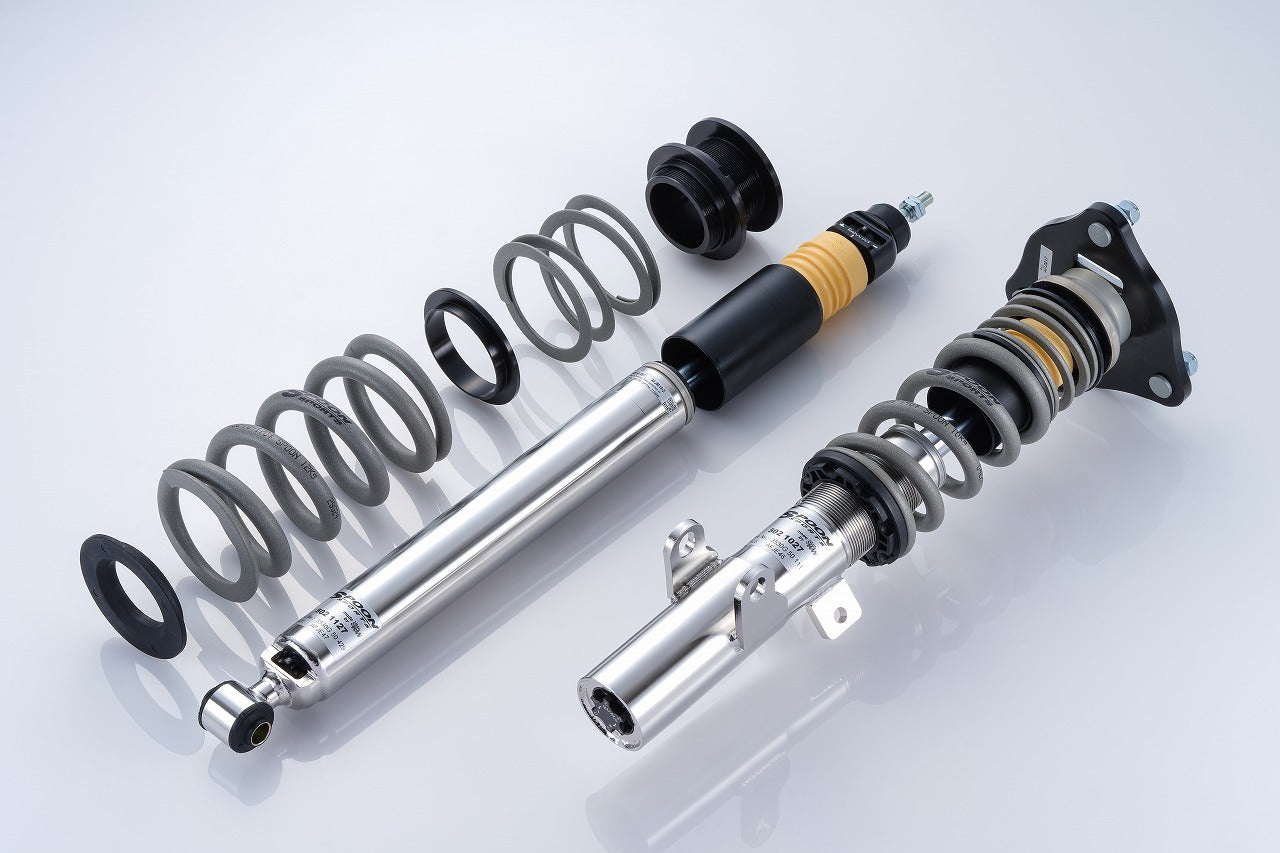

| Series Name | FULL SPEC DAMPER KIT |
| Product Number | 51600-FL5-G20 |
| Compatible Car | HONDA CIVIC FK8 FL5 |
| Compatible Engine | K20C |

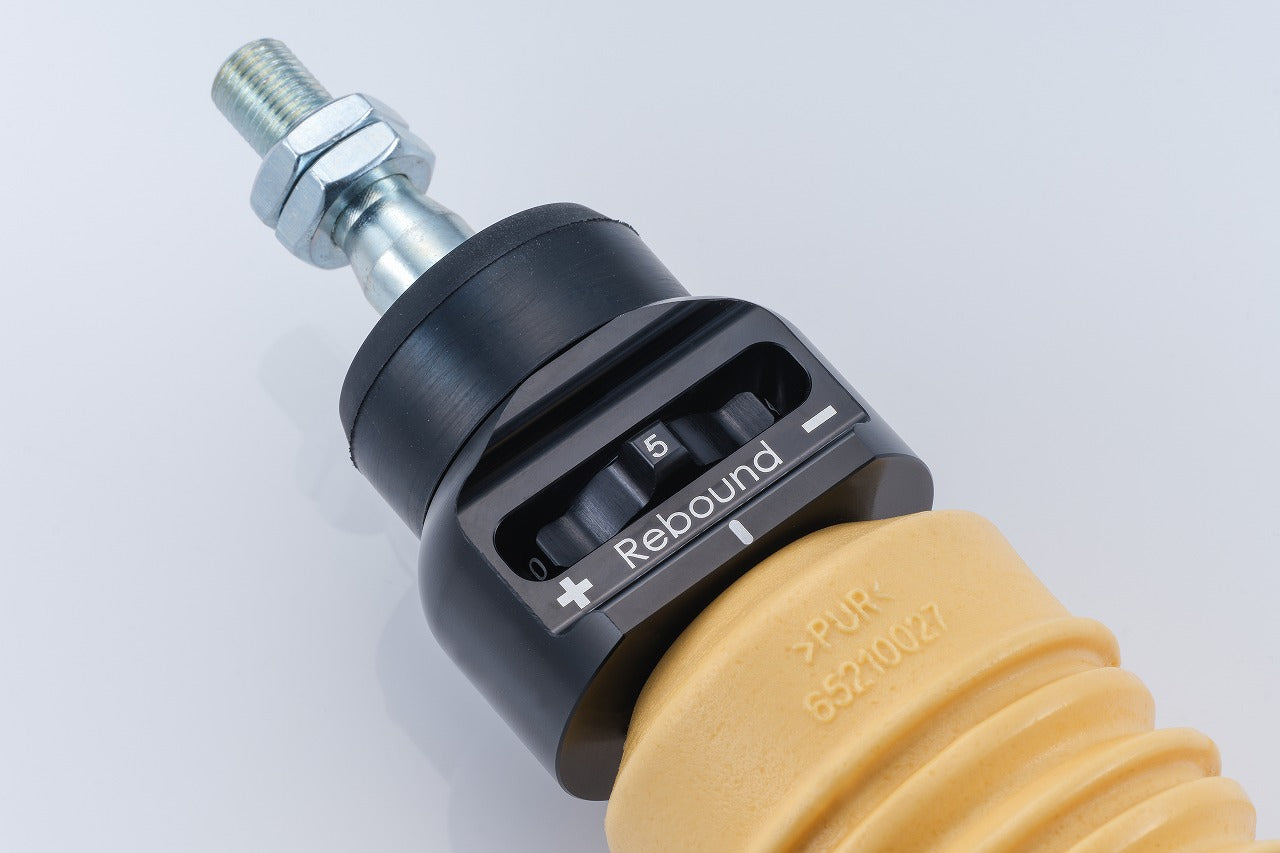

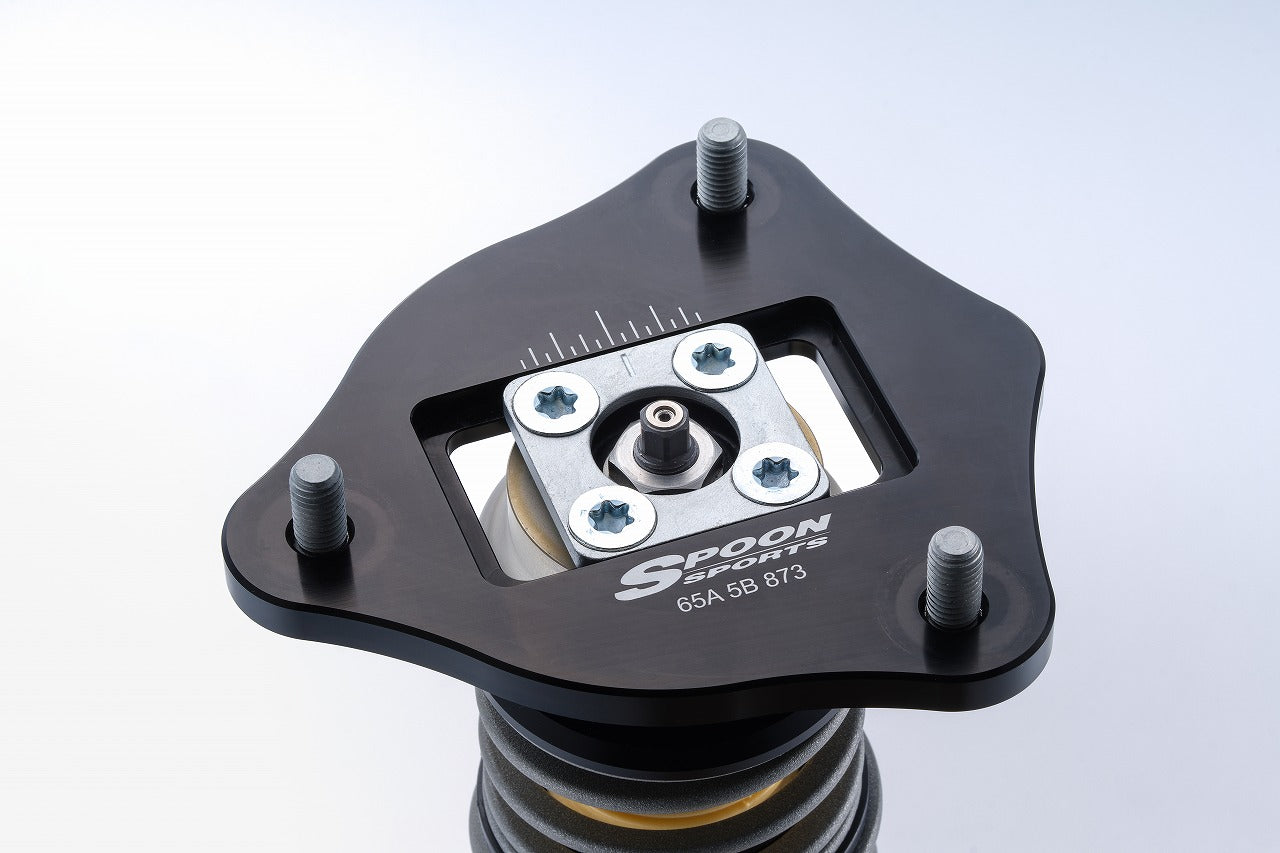

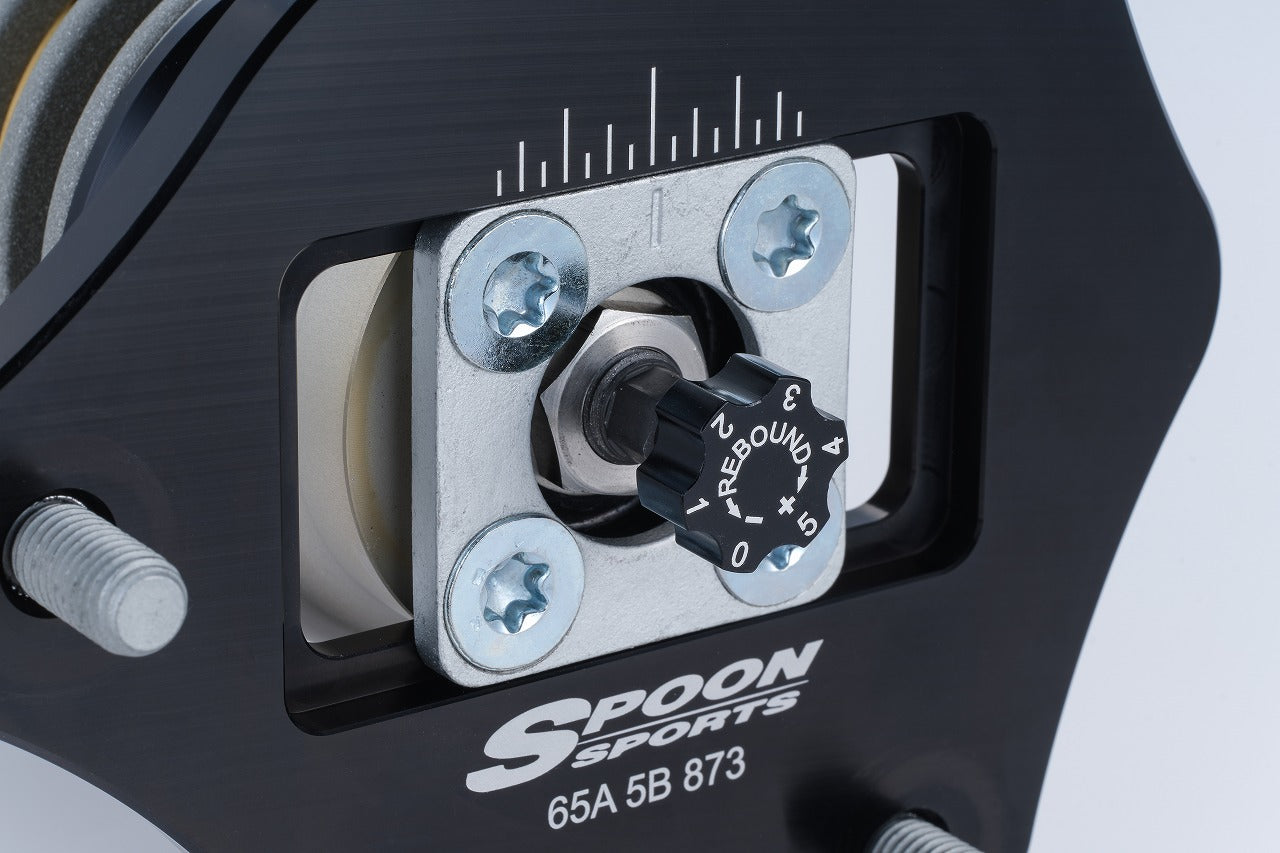

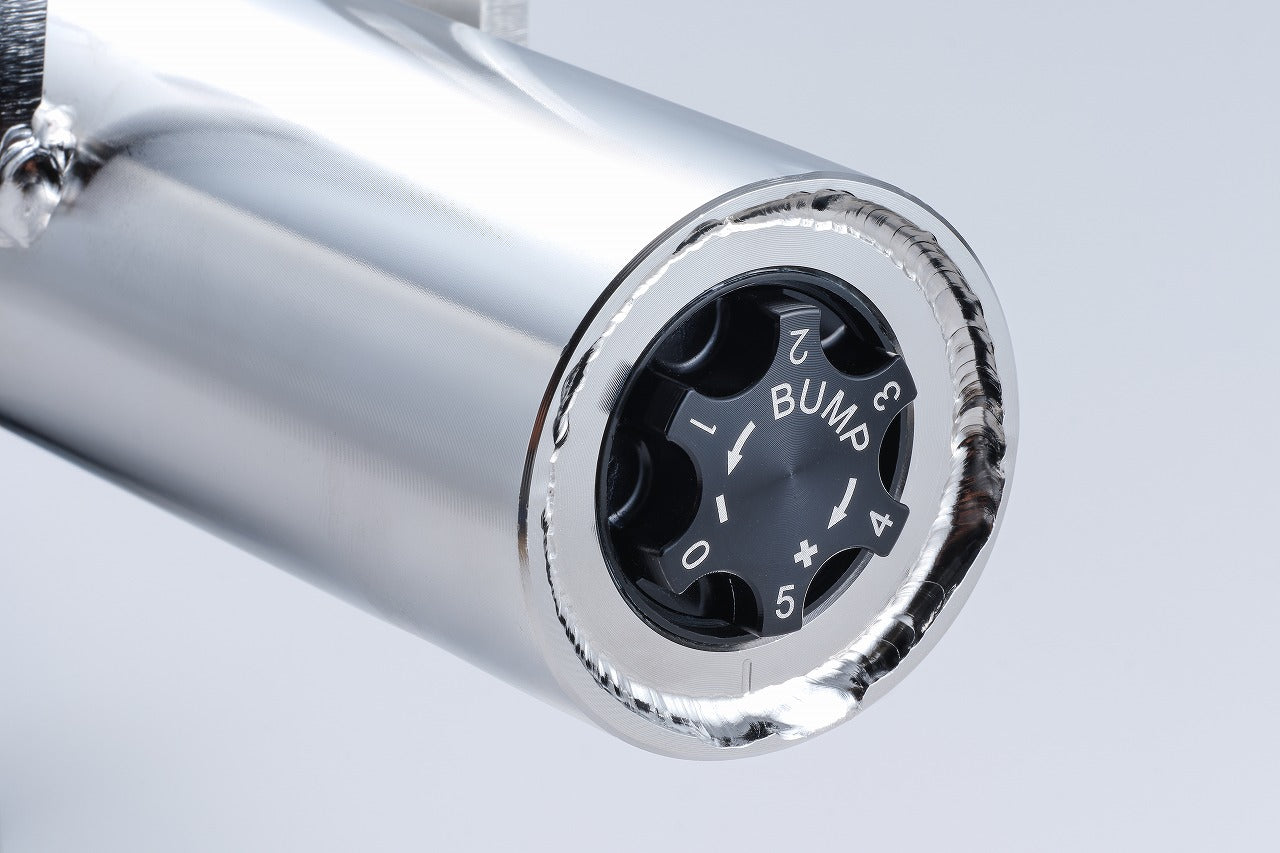

| Product Description | We will participate in the North American Thunderhill 25 Hours race with the FK8 in 2021 and the FL5 in 2023, and have begun developing a height-adjustable suspension for the FK8/FL5 with the cooperation of KW North America. Based on the data obtained from actual races, we conducted repeated tests on the street, circuit, and winding roads to develop a full-spec damper kit that can be used on both the street and the circuit. The damping force is adjusted in two ways: on the extension side and the compression side, and the front is equipped with a camber-adjustable upper mount. A wide range of adjustments can be made to suit the driving stage. Experience the smooth, flat ride feel when driving around town and the direct, smooth cornering that approaches that of a racing car when driving in sports. Notes & Special Notes 【Spring rate】Fr: 10kgf/mm (140mm ID60), Rr: 12kgf/mm (170mm ID70) 【Factory height: compared to stock】Fr: -20mm Rr: -25mm 【Factory height: jack point】Fr: 140mm Rr: 155mm 【Recommended height adjustment range: compared to stock】Fr: 0 to -35mm Rr: 0 to -40mm 【Damping adjustment range】BUMP 12 steps/REBOUND 16 steps 【Recommended damping dial position】BUMP Fr: 6 steps Rr: 6 steps REBOUND Fr: 9 steps Rr: 9 stages 【Factory camber value】Fr: -2° Rr: -2° 【Camber adjustment range】Fr: -1.0 to -3.0° Note) Vehicle height is measured on our demo car. Damper control canceller, hook wrench, and damping adjustment dial included |
| Remarks | Compatible Models: DBA-FK8, 6BA-FK8, 6BA-FL5 |
| Notes | Images are for illustration purpose only. Actual product may vary. |
