¥31,933 JPY
| /
Brand | J'S RACING |
Series Name | REAR ROLL CENTER ADJ 20MM |
Product Number | RCJ-S1-20 |
Compatible Car | HONDA S2000 AP1 |
Compatible Engine | F20C |

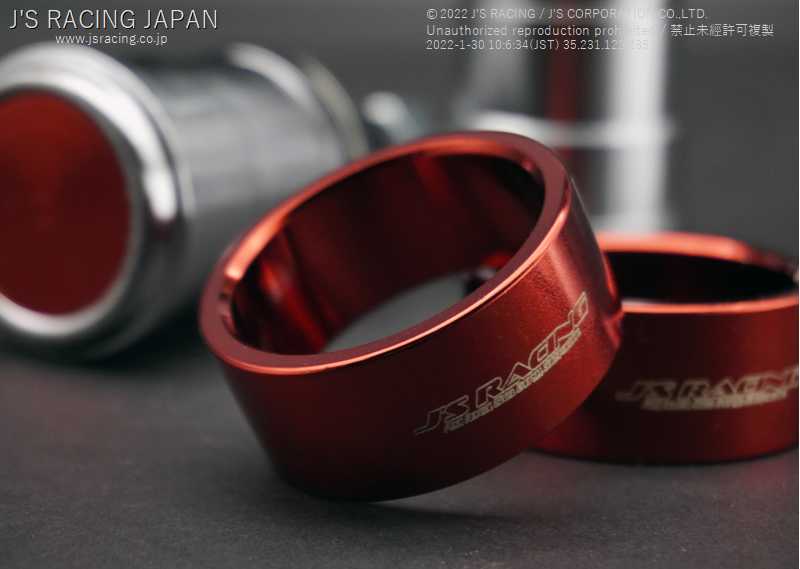

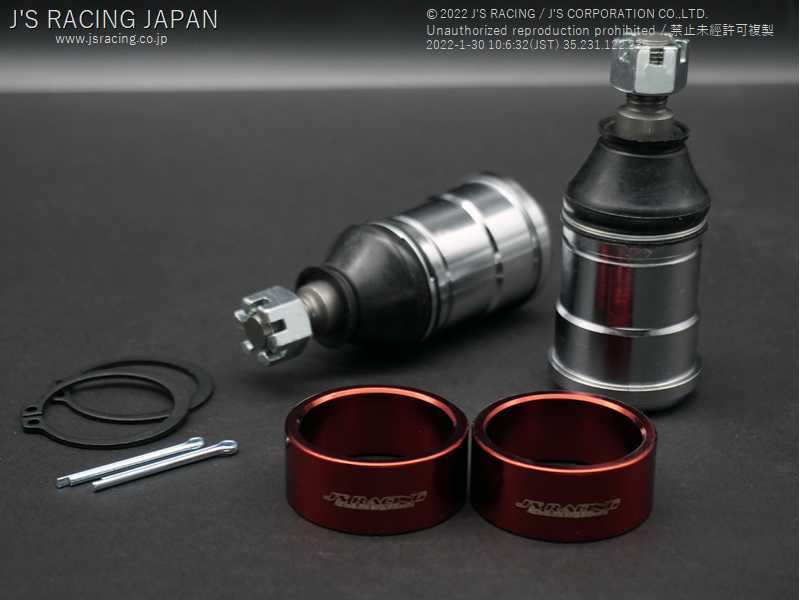

Product Description | Material: Tylot end S45C Tylot end ball stud SCM435 Ball joint S45C Ball stud SCM435 HB195-260 Swing angle all around 39 ° 20mm extension type S2000 Ideal to modify the roll center Introducing special parts that can be changed to geometry. The lower arm angle of the S2000, which has been lowered, has an inverted C shape, and the roll center point is too low. When the center of gravity of the car and the roll center are separated, the amount of roll increases and the cornering force is sacrificed. Also, the suspension stroke is reduced and the limit is lowered. By installing the J'S RACING roll center adjuster, the lowered roll center can be corrected to the ideal position (the distance between the center of gravity of the vehicle and the roll center is corrected to a short position), and the ideal suspension geometry. To realize. [Mounting effect] ★ Reduced roll amount ★ Improved tire contact feeling ★ Improved steering response ★ Increased cornering force Super Special parts born from endurance and time attack participation know-how You can use it regardless of the stage from street to circuit. J'S RACING repeats TEST many times and has a lineup of 20mm and 30mm, which are optimal for S2000 roll center correction, according to the set vehicle height. Please install after confirming the usage environment. (Usage example 1) * Vehicle height down from 20mm to 50mm Rear roll center adjuster → 20mm recommended (Usage example 2) * Vehicle height down vehicle over 40mm Rear roll center adjuster → 30mm recommended * The above figures are for reference only. Select the appropriate height depending on the circuit and suspension. * It is not recommended to install it on vehicles with normal ride height. The tilt angle of the roll axis (the line connecting the front and rear roll centers) is also a very important point when setting the S2000. When installing the rear roll center adjuster, be sure to install the front camber joints S1 and S2 and the roll center adjuster plate before setting the geometry. |
Remarks | Engine: F20C * Cannot be installed on 16-inch wheel vehicles. Press work is required for mounting. We recommend that you replace it at a professional shop. It is necessary to adjust the vehicle height and alignment after replacement. Please follow the specified torque and install correctly. * Please check the tightening of bolts and nuts regularly after mounting. Please do this every time, especially before driving on the circuit. |
Notes | Images are for illustration purpose only. Actual product may vary. |
