¥167,879 JPY ¥186,624 JPY
| /
| Brand | IKEYA FORMULA |

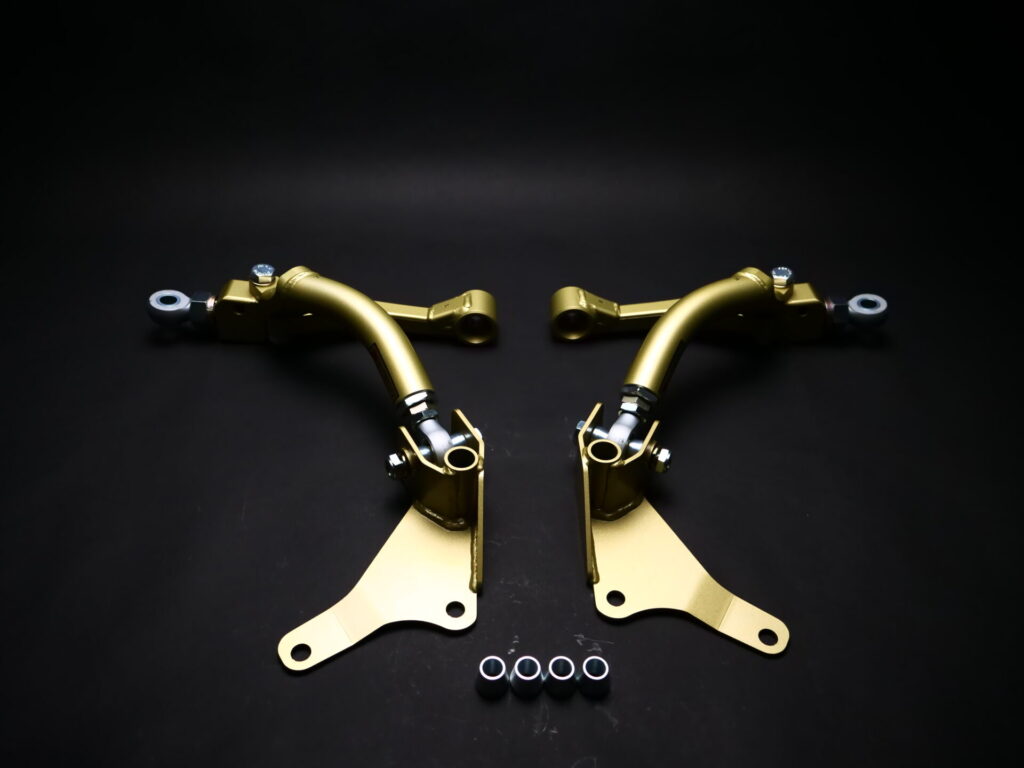

| Series Name | ROLL CENTER ADJUSTER PILLOW LOWER ARM KIT |
| Product Number | IFAF08002 |
| Compatible Car | TOYOTA CROWN JZS17# MARK II JZX110W |
| Product Description | Roll Center Adjuster Pillow Lower Arm Kit This item corrects the deterioration of the roll center position that occurs when the vehicle height is lowered with the genuine lower arm to the ideal roll center position. It is possible to improve the steering response by eliminating the insufficient stroke of the lower arm and improving the tire contact pressure that occurs with a low vehicle height setup. In addition, by adding an adjustment mechanism to the rod end on the knuckle side and adjusting the tread width, it is possible to further improve chassis performance. *Alignment adjustment required *When performing roll center correction, it is necessary to adjust the vehicle height. *Tread adjustment range ±9.5mm ☆Repair parts ・Tension mounting bracket ¥28,800 (for 1 vehicle, tax excluded) ・Turnbuckle body (with lock nut) ¥7,200 (1 piece, tax excluded) [Specifications for rod end pillow ball bushing, etc. Please contact us as there is a possibility of change] Click here for the current rod end list ・Rod end pillow ball bushing 182015R0 ・Rod end 002415RB ・Pillow ball MBT14 Please inquire once when you want. ★We also have an [overhaul plan] where we check the product for cracks, replace pillow balls and ball joints, and repaint. Please contact us for details. ★ "Lower arm extension processing" aiming to expand the tread width even more than the standard specification is available for ¥ 54,000 (one unit, tax excluded). (Arms that have been extended are treated as competition-only parts. *Cannot be used on public roads.) |
| Notes | Images are for illustration purpose only. Actual product may vary. |
