¥110,753 JPY ¥123,120 JPY
| /
| Brand | IKEYA FORMULA |
| Series Name | FRONT ADJUSTER PILLOW LOWER ARM |
| Product Number | IFAE10004 |
| Compatible Car | TOYOTA 86 ZN6 |

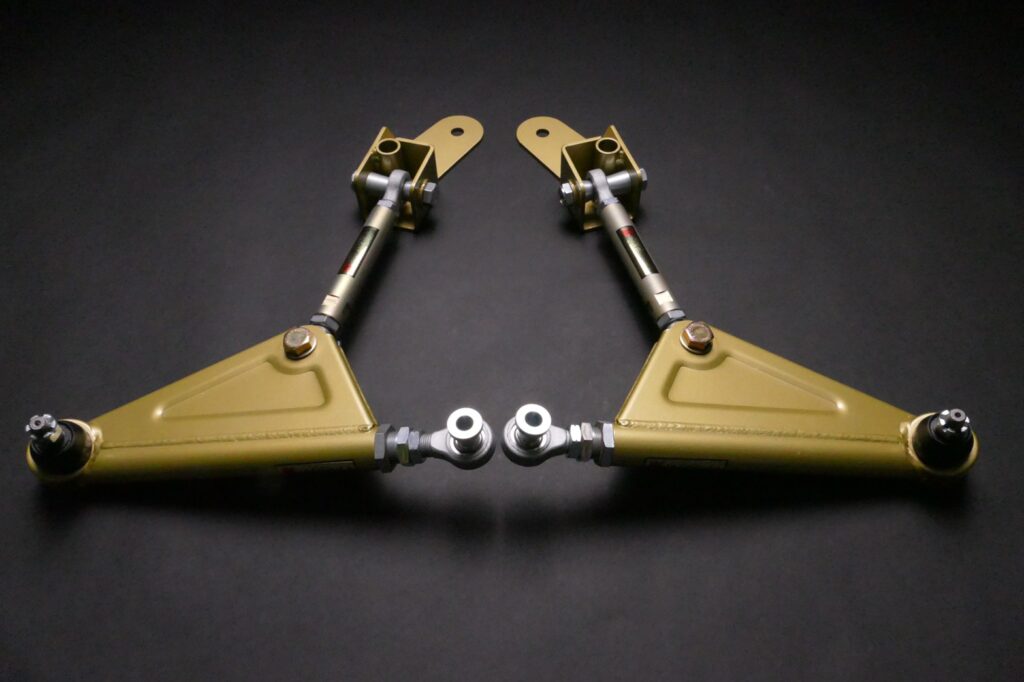

| Product Description | Front Adjuster Pillow Lower Arm This item corrects the deterioration of the roll center position that occurs when the vehicle height is lowered with the genuine lower arm to the ideal roll center position. It is possible to improve the steering response by eliminating the insufficient stroke of the lower arm and improving the tire contact pressure that occurs with a low vehicle height setup. In addition, the turnbuckle mechanism of the lower arm and tension rod greatly expands the range of settings such as tread, caster, and camber. *Adjustment range Tread (-8mm to +20mm on one side) Camber (From current value to 30' for positive and 2°40' for negative) Caster (From genuine value 5°54' to ±1°30') ☆Repair parts [Rod The end pillow ball bushings are subject to change, so please contact us.] Click here for the list of current rod ends ・Rod end pillow ball bushing 141815L0 (front tension, lower arm member side) ・Rod end 001815R0 (tension-lower arm joint) |
| Notes | Images are for illustration purpose only. Actual product may vary. |
