¥88,603 JPY ¥98,496 JPY
| /
| Brand | IKEYA FORMULA |
| Series Name | ROLL CENTER ADJUSTER PILLOW LOWER ARM |
| Product Number | IFAE10003 |
| Compatible Car | TOYOTA ARISTO JZS16# |

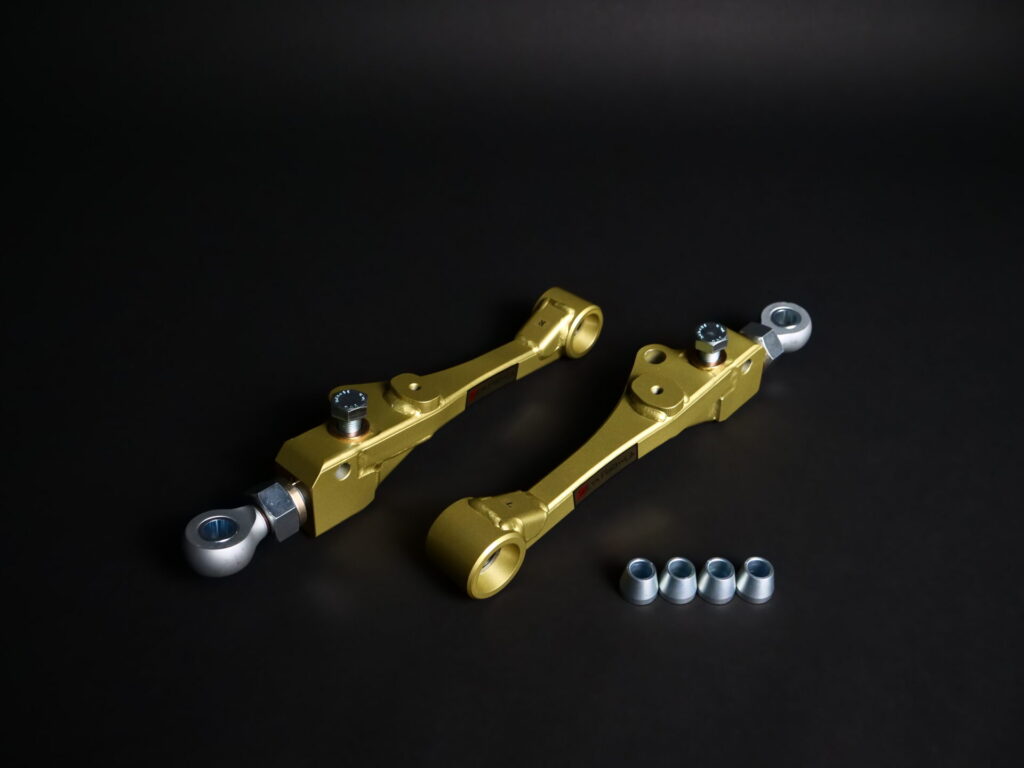

| Product Description | Roll Center Adjuster Pillow Lower Arm Roll Center Adjuster Pillow Lower Arm It is an item that corrects the "deterioration of the roll center position" that occurs when the vehicle height is lowered with the genuine lower arm to the ideal roll center position. It is possible to improve the steering response by eliminating the insufficient stroke of the lower arm and improving the tire contact pressure that occurs with a low vehicle height setup. In addition, by adding an adjustment mechanism to the rod end on the knuckle side and adjusting the tread width, it is possible to further improve chassis performance. Note: Genuine tension rod cannot be used. Only our tension rods are compatible. * "Kit" comes with our pillow tension rod. *Alignment adjustment required *When performing roll center correction, it is necessary to adjust the vehicle height. *Tread adjustment range ±9.5mm ☆ Repair parts Since the product specifications change depending on the time, please contact us once when you are looking for repair parts. ★We also have an [overhaul plan] where we check the product for cracks, replace pillow balls and ball joints, and repaint. Please contact us for details. ★ [Lower arm extension processing] aimed at expanding the tread width further than the standard specification is also available for ¥ 54,000 (for one car). (Arms that have undergone extension processing will be treated as competition-only parts. *Cannot be used on public roads.) |
| Notes | Images are for illustration purpose only. Actual product may vary. |
