PIVOT 3-DRIVE AC THROTTLE CONTROLLER W. CRUISE FOR DAIHATSU TOLL M900 910S THA

PIVOT

Brand
PIVOT
Product Number
THA
Compatible Car
DAIHATSU TOLL M900 910S
Compatible Engine
1KR-FE
Product Description
Standard model special harness sold separately
_x000D_ Model Year: 2016/11 ~
_x000D_ harness No: 2A (Sold Separately)
_x000D_ brake harness part number: BR-1 (Sold Separately)
_x000D_ Features
_x000D_ Basic Features

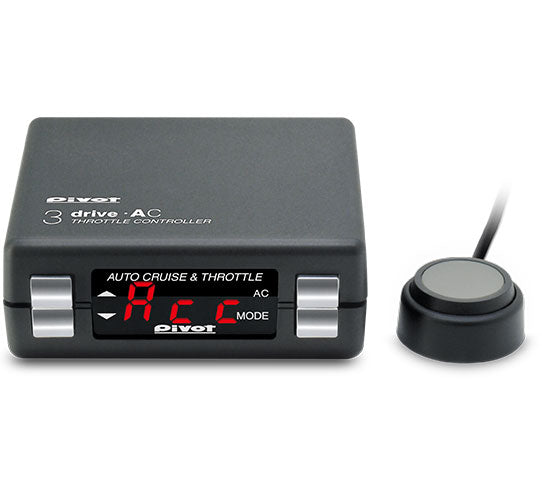

_x000D_ 3-drive · AC is our newly designed throttle controller for adjusting response in all types of driving from Sports to Eco-driving;. now featuring an Auto-Cruise function
_x000D_ This compact all- in-one body makes it possible to install in out of the way places such as storage box or near the steering wheel.
_x000D_ Micro-computer control means less noise and less heat.
_x000D_ Stable balanced control is possible by running the "Initial Settings" program after having finished installation;. this will help reduce troubles caused by voltage differences found in each car model
_x000D_ System designed to give priority to safety even in times of trouble.
_x000D_ THROTTLE CONTROL
_x000D_ SPORTS & ECO
_x000D_ 3-drive enables both the "raising" and "lowering" of response to acceleration in electronic . throttle car models, giving the driver control over acceleration response for both sports driving and eco-driving
_x000D_ 12-Step Adjustment
_x000D_ A wide variety of possible adjustments to meet you need; 7 for Sports and 5 for Eco .
_x000D_ Acceleration Monitor
_x000D_ Open times of the accelerator (amount of depressing) are displayed and it is convenient for the eco-driving etc.
_x000D_ Performance data of Throttle Control
_x000D_ AUTO CRUISE CONTROL
_x000D_ Auto-Cruise allows you to set the most suitable speed to cruise at while driving;. resulting in superior fuel-efficiency (. Approx 30 to 140 km / h)
_x000D_ Stable Speed ​​Control
_x000D_ Our exclusively designed system lessens quick changes in speed;. bringing you automatic cruise control with even more comfort
_x000D_ User-Friendly Switch for Smooth Operation
_x000D_ The separate switch allows for easy one-handed operation and installs almost anywhere with double-sided tape .
_x000D_ Deactivating Operation
_x000D_ Stepping on the brake while Auto-Cruise is activated will deactivate its operation and return to normal driving mode. Auto-Cruise will also be deactivated when the Set switch is pressed, if the brake fuse burns out, or if the speed is much lower than the set speed.
_x000D_ Prevent Abnormal Acceleration
_x000D_ Our safety design uses a microcomputer to monitor two kinds of output signal and if an abnormality is sensed will return to normal driving mode to prevent abnormal acceleration.
_x000D_ Performance data of AUTO CRUISE
_x000D_ New model Lever Spacer
Remarks
Smart assist II, III vehicles equipped 3DA-C, the corresponding
_X000D_ collision mitigation system Car 3DR-L is the attachable
_X000D_ collision mitigation system vehicles, 3DR-L, 3DA-B, 3DA- C, 3DA-T is a possible correspondence, other products will be not applicable.
_x000D_ models that check the vehicle is not completed will be Not applicable.
_x000D_ in trouble when fitted with a corresponding non-product to the collision mitigation system car, we do not take any responsibility.
_x000D_ each harness for 3-drive is on quality assurance, please do not use the competitor's product.
_x000D_ When the auto cruise when you replace the brake lamp LED does not work, please use to return to the light bulb. Please be sure to initial settings when you installed
_x000D_ to the new vehicle.
_x000D_ removal of the accelerator connector, please go to the "after the engine is stopped for more than 15 minutes."
_x000D_ it can not be installed on the car below.
_x000D_ 1 genuine auto-cruise vehicles equipped 2 wire throttle vehicles
Notes
Images are for illustration purpose only. Actual product may vary.
