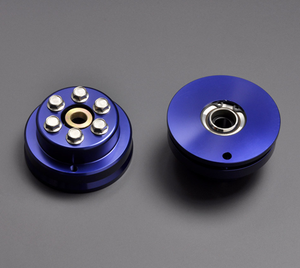

TOP FUEL PILLOW UPPER MOUNT FIXED FOR HONDA CR-Z ZF1 ZF2

¥49,183 JPY

| /

Brand
TOP FUEL
Series Name
PILLOW UPPER MOUNT FIXED
Product Number
TOPFUEL-0067
Compatible Car
HONDA CR-Z ZF1 ZF2
Product Description
Most of the front shocks of recent strut suspension cars are mounted by sandwiching the body with a large rubber mount.
Because of the rubber mount, it naturally causes twisting, and of course the camber cannot be adjusted.
Under heavy load conditions such as circuit driving, the genuine rubber mount may not be able to withstand the load and deform, and the fixed position of the damper may move to the extent that the alignment changes.

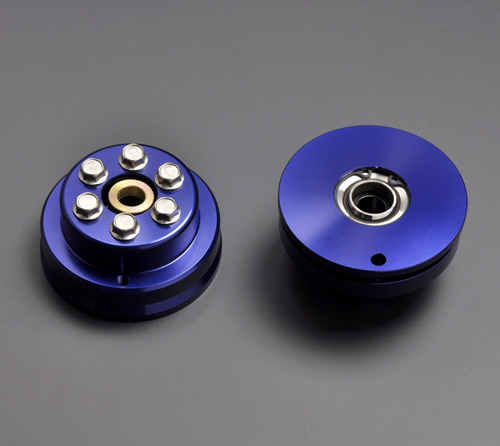

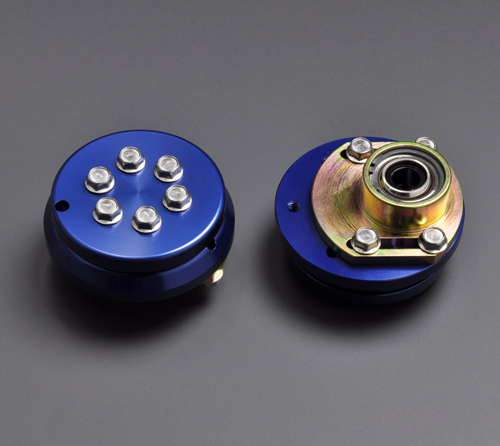

Therefore, this product uses aluminum instead of rubber for the mount part. Eliminates crushing and deformation of rubber.
The metal mount eliminates the movement of the rubber mount that occurs during the stroke of the damper, and the use of pillow balls eliminates the bending force applied to the damper shaft, allowing for straightforward movement of the suspension and direct handling. Make it possible.
In addition, we also have a lineup of camber adjustment types, so camber adjustment is also possible!
It will be a blue alumite finish.


● Price

Camber adjustment type ¥ 45,000
Camber fixed type ¥ 40,000


● Compatible model

・ Honda / CR-Z ZF1, ZF2
・ Honda / Fit GE6, GE8
・ Honda / N-ONE


● Compatible suspension

・ Camber adjustment type
> Our blue damper and HKS harmonic drive have been confirmed to be installed, but if the size of the shaft part etc. match, it can be combined with other harmonic drive. (Cannot be installed on upright dampers)

-Camber fixed type
Since it is designed so that it can be used by attaching it to genuine suspensions, it is almost from genuine and genuine shape dampers to harmonic drive. It can be attached to all dampers.
It may not be used for some special suspensions (with damping adjustment motor, etc.).


* Caution

-Installing this product will increase the vehicle height.
The camber adjustment type raises the vehicle height by about 25 mm, and the camber fixed type raises the vehicle height by about 5 mm.
Be sure to check the height adjustment range of the suspension you are using.
(The amount of change in vehicle height is a guide. It may change depending on the individual vehicle.)

-Since the rubber mount is not used, noise may occur due to the movement of the damper or the shaking of the vehicle. There is, but it is not abnormal. Be sure to check the height adjustment range of your suspension.
(The amount of change in vehicle height is a guide. It may change depending on the individual vehicle.)

-Since the rubber mount is not used, noise may occur due to the movement of the damper or the shaking of the vehicle. There is, but it is not abnormal. Be sure to check the height adjustment range of your suspension.
(The amount of change in vehicle height is a guide. It may change depending on the individual vehicle.)

-Since the rubber mount is not used, noise may occur due to the movement of the damper or the shaking of the vehicle. There is, but it is not abnormal.
Notes
Images are for illustration purpose only. Actual product may vary.
