¥33,810 JPY ¥37,809 JPY
| /
Brand | JUN AUTO |
Product Number | 1004M-N506 |
Compatible Car | NISSAN |
Compatible Models | RB26DETT |

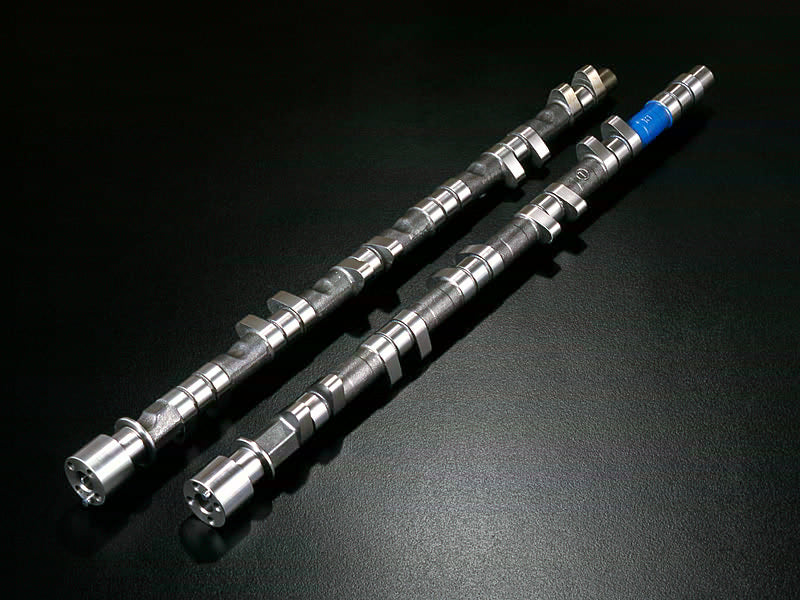

Product Description | (Product No.: For R34) Regular Camshaft Series: This series is a camshaft with the generality which it has from former times. And, this series can choose in the Camshaft Kit. Spec (unit: mm) Duration: 68 (272) Lift: 11.35 BC: 29 VC: 0.33 EX * VC=Valve Clearance (cool conditions) |
Remarks | [REQUIRED]Cam lobe refuge machining [REQUIRED]Reinforced valve spring [REQUIRED]Special valve retainer * The height of lift shows the valve lift. * The camshaft which is 10.5mm or higher lift of the profile needs to trim your cylinder head. * You may need to trim your cylinder head according to the conditions of your cylinder head even if it is under 10.5mm so that a cam lob does not hit to the cylinder head. * The camshaft which is 11.35mm or higher lift of the profile needs to use valve springs for high lift. * The camshaft which is 10.8mm or higher lift of the profile needs to use the exclusive use valve retainers (+0.5mm offset). * The camshaft which is 11.35mm or higher lift of the profile needs to use the exclusive use valve retainers (+1.5mm offset). * We prepare the Camshaft Kit which contains valve springs and valve retainers. * Intake camshafts for BNR34 are same as the BNR32/BCNR33 |
Notes | Images are for illustration purpose only. Actual product may vary. |
